2. Spatial SQL#
This chapter describes the spatial data types, spatial SQL statements, and spatial functions and operators that are supported in Altibase.
The implementation of spatial SQL in Altibase conforms with the ISO SQL/MM spatial standards and the Simple Features Specification for SQL proposed by the Open Geospatial Consortium (OGC).
Because the Simple Features Specification for SQL is an extension of standard SQL, users who are familiar with SQL can continue to use queries in the way to which they are accustomed when dealing with spatial data.
GEOMETRY Data Type#
An understanding of spatial data types is required in order to manipulate spatial data in a database using spatial SQL. In this section, the spatial data types will be described in detail.
The spatial data type that is currently supported for use with SQL is the GEOMETRY type. The GEOMETRY type consists of the following 7 subtypes:
-
POINT
-
LINESTRING
-
POLYGON
-
MULTIPOINT
-
MULTILINESTRING
-
MULTIPOLYGON
-
GEOMETRYCOLLECTION
The following diagram illustrates the relationships between the GEOMETRY data type and the seven subtypes that it consists of.
[Figure 2‑1] The relationships between the GEOMETRY data type and the seven subtypes
The GEOMETRY data type, as supported in Altibase, uses X and Y coordinates to represent a POINT, which represents a single point in space, and uses two or more POINTS to represent a LINESTRING. Depending on whether or not it is closed (i.e. on whether the two terminal points are the same), a LINESTRING is referred to either as a LINE1, which is unclosed, or as a LINEARRING2, which is closed. The terms LINE and LINEARRING are used to indicate the shape of spatial objects, but do not denote mutually distinct data types.
A POLYGON consists of one or more LINEARRINGS. A MULTIPOINT consists of one or more POINTS, a MULTILINESTRING consists of one or more LINESTRINGS, and a MULTIPOLYGON consists of one or more POLYGONS. Finally, a GEOMETRYCOLLECTION can comprise any of the foregoing objects. In addition to the seven subtypes described above, Altibase also supports the EMPTY type. The EMPTY type can only be created by performing operations on spatial objects. The EMPTY type is returned by an operator whose return type is GEOMETRY when there is nothing to return as the result of an operation.
Classification of Subtypes#
The criteria that are used to distinguish the 7 subtypes of the GEOMETRY data type from each other are described in the following [Table 2-1]:
| Subtype Name | Constituent Elements | Dimensions | Simple | Closed | Intererior | Boundary | Exterior |
|---|---|---|---|---|---|---|---|
| Point | One Point | 0 | O | X | Point | Ø5 | Surface |
| LINESTRING | Two or more POINTs | 1 | *6 | * | Line | Ø when closed; both end points when not closed | Surface |
| POLYGON | One or more simple closed LINESTRINGs | 2 | O7 | O | Surface | A LINESTRING that includes all internal and external rings | Surface |
| MULTIPOINT | One or more POINTs | 0 | * | X | Point | Ø | Surface |
| MULTILINESTRING | One or more LINESTRINGs | 1 | * | * | Line | Ø when closed; both end points when not closed | Surface |
| MULTIPOLYGON | One or more POLYGONs | 2 | O | O | Surface | A LINESTRING taht includes all internal and external rings in all spatial objects that is consists of | Surface |
| GEOMETRYCOLLECTION | Two or more non-GEOMETRYCOLLECTION type spatial objects | Maximum of 2 diemensions | * | * | The interior of all spatial objects | The boundaries of all spatial objects | Surface |
[Table 2-1] Subtypes of the Geometry Data Type
POINT#
Syntax#
POINT( x y )
x#
The x-coordinate
y#
The y-coordinate
Description#
A POINT represents the location of a single point in a coordinate system. It is a zero-dimensional simple unclosed spatial object that has a single point as its only element. The interior of the spatial object is the POINT itself. It has no boundary. The exterior is the surrounding surface, not including the POINT itself.
Characterstic#
A POINT has x- and y-coordinate values.
Example#
CREATE TABLE building ( id INTEGER, obj GEOMETRY ) ;
INSERT INTO building VALUES (1, GEOMETRY'POINT( 10 10 ) ') ;
INSERT INTO building VALUES (2, GEOMFROMTEXT('POINT(20 20)'));
INSERT INTO building VALUES (3, POINTFROMTEXT('POINT( 100 100 )')) ;
INSERT INTO building VALUES (4, GEOMETRY'POINT EMPTY');
INSERT INTO building VALUES (5, GEOMFROMTEXT('POINT EMPTY'));
INSERT INTO building VALUES (6, POINTFROMTEXT('POINT EMPTY'));
MULTIPOINT#
Syntax#
MULTIPOINT( x1 y1 [, xn yn ] )
xn#
The value of the x-coordinate for the nth point
yn#
The value of the y-coordinate for the nth point
Description#
A MULTIPOINT is a zero-dimensional unclosed spatial object that has one or more POINTs as its elements. The interior of the spatial object is defined by the points that comprise the MULTIPOINT object. It has no boundary. The exterior is the surrounding surface, not including the POINTs themselves.
Characteristics#
A MULTIPOINT is considered simple if no two of its points have the same coordinates.
Limitation#
A MULTIPOINT only has points as its constituent elements. These points are not interconnected or ordered.
Example#
CREATE TABLE building ( id INTEGER, obj GEOMETRY ) ;
INSERT INTO building VALUES (1, GEOMETRY'MULTIPOINT( 10 10, 20 20 )') ;
INSERT INTO building VALUES (2, GEOMFROMTEXT('MULTIPOINT( 10 20, 20 30 ) ')) ;
INSERT INTO building VALUES (3, MPOINTFROMTEXT('MULTIPOINT( 100 100, 150 150 )')) ;
INSERT INTO building VALUES (4, GEOMETRY'MULTIPOINT EMPTY');
INSERT INTO building VALUES (5, GEOMFROMTEXT('MULTIPOINT EMPTY'));
INSERT INTO building VALUES (6, MPOINTFROMTEXT('MULTIPOINT EMPTY'));
LINESTRING#
The following is a text string representation of a linestring object.
Syntax#
LINESTRING( x1 y1 , x2 y2 [, xn yn ] )
xn#
The value of the x-coordinate for the nth point
yn#
The value of the y-coordinate for the nth point
Description#
A LINESTRING is a one-dimensional spatial object that has two or more POINTs as its elements. These POINTs are connected with each other via straight lines. The interior of the spatial object is the actual segment that is the LINESTRING. If the segment is closed, the LINESTRING has no boundary, whereas if the segment is not closed, the LINESTRING has the two terminal POINTs as its boundary. The exterior is the surrounding surface, not including the LINESTRING itself.
Characteristics#
If a LINESTRING is closed and simple, it is called a LINEARRING. In the following figure, LINESTRING #3 is a LINEARRING because it is a closed and simple LINESTRING, while LINESTRING #4 is not a LINEARRING because even though it is closed, it is not a simple LINESTRING.
[Figure 2-2] Examples of LineString
Example#
CREATE TABLE road ( id INTEGER, obj GEOMETRY ) ;
INSERT INTO road VALUES (1, GEOMETRY'LINESTRING( 0 18, 10 21, 16 23, 28 26, 44 31 )') ;
INSERT INTO road VALUES (2, GEOMFROMTEXT('LINESTRING( 30 31, 56 34, 70 24 )')) ;
INSERT INTO road VALUES (3, LINEFROMTEXT('LINESTRING( 70 38, 32 12, 36 36 )')) ;
INSERT INTO road VALUES (4, GEOMETRY'LINESTRING EMPTY');
INSERT INTO road VALUES (5, GEOMFROMTEXT('LINESTRING EMPTY'));
INSERT INTO road VALUES (6, LINEFROMTEXT('LINESTRING EMPTY'));
MULTILINESTRING#
Syntax#
MULTILINESTRING( (x1 y1, x2 y2 [, xn yn ] ) [, (x1 y1, x2 y2 [, xn yn ] ) ] )
xn#
x 좌표의 n번 째 값
yn#
y 좌표의 n번 째 값
Description#
A MULTILINESTRING is a one-dimensional spatial object comprising one or more LINESTRINGS (segments) as its elements. The interior of the spatial object is defined by the segments that comprise the MULTILINESTRING. The boundary of the MULTILINESTRING consists of the two terminal POINTs of any constituent segments that are not closed. If all segments are closed, the MULTILINESTRING has no boundary. The exterior is the surrounding surface, not including the segments.
Characteristics#
If all of the LINESTRINGs that a MULTILINESTRING consists of are closed, the MULTILINESTRING itself is closed, and has no boundary
In the following figure, the boundaries of the MultiLineStrings are {s1, e2} for (1), {s1, e1} for (2) and φ (i.e. an empty set) for (3).
[Figure 2-3] Examples of MultiLineString
Example#
CREATE TABLE road ( id INTEGER, obj GEOMETRY ) ;
INSERT INTO road VALUES (1, GEOMETRY'MULTILINESTRING(( 10 48, 10 21, 10 0 ), (16 0, 16 23, 16 48) )') ;
INSERT INTO road VALUES (2, GEOMFROMTEXT('MULTILINESTRING(( 38 48, 44 41, 41 36, 44 31, 52 18 ), ( 60 10, 58 30, 52 36))')) ;
INSERT INTO road VALUES (3, MLINEFROMTEXT('MULTILINESTRING(( 14 24, 28 28, 34 36 ), ( 56 38, 48 36, 56 16, 68 24 ))')) ;
INSERT INTO road VALUES (4, GEOMETRY'MULTILINESTRING EMPTY');
INSERT INTO road VALUES (5, GEOMFROMTEXT('MULTILINESTRING EMPTY'));
INSERT INTO road VALUES (6, MLINEFROMTEXT('MULTILINESTRING EMPTY'));
POLYGON#
Syntax#
POLYGON( (x1 y1, x2 y2, x3 y3 [, xn yn ])[, (x1 y1, x2 y2, x3 y3 [, xn yn ] ) ] )
xn#
The value of the x-coordinate for the nth point
yn#
The value of the y-coordinate for the nth point
Description#
A POLYGON is a spatial object that represents a surface in a space. It is a two-dimensional spatial object comprising one or more simple closed LINESTRINGs. A POLYGON must also be simple and closed. The interior of the spatial object is the surface defined by the POLYGON. The exterior is the surrounding surface, not including the POLYGON itself. The boundary consists of any exterior rings that comprise the POLYGON. For example, the boundary of a POLYGON that consists of an exterior ring and an interior ring is the LINESTRINGs that respectively define the exterior ring and the interior ring.
Characteristics#
- A POLYGON is defined as a surface that has one exterior boundary and 0 (zero) or more interior boundaries.
- A POLYGON is a simple closed spatial object.
- The boundary of a POLYGON consists of LINEARRINGs that form interior and exterior boundaries.
The following figure shows representative examples of POLYGONs.
[Figure 2-4] Examples of Polygon
Requirements for a Polygon#
No two closed LINESTRINGs that form the boundary of a POLYGON can intersect or be tangent to each other. They can only meet each other at a single point, and both LINESTRINGs must have POINTs defined where they meet.
∀ P ∈ Polygon, ∀ c1, c2 ∈ P.Boundary(), c1 ≠ c2, ∀p, q ∈ Point,
p, q ∈ c1, p ≠ q, [p ∈ c2 ⇒ q ∈ c2]
The interior ring must not be connected to the exterior of a Polygon.
A Polygon cannot have a segment protruding from it, nor can it have within it a point that is not part of a closed LINESTRING.
∀ P ∈ Polygon, P = Closure(Interior(P))
The entire interior of a POLYGON must form a single interconnected surface.
The following figure shows objects that do not satisfy the above requirements, and thus cannot be represented as POLYGONS.
[Figure 2-5] Examples of spatial objects that cannot be represented as Polygon.
Examples#
CREATE TABLE lake ( id INTEGER, obj GEOMETRY ) ;
INSERT INTO lake VALUES (1, GEOMETRY'POLYGON(( 14 42, 18 18, 36 12, 58 24, 34 24, 36 44, 24 56, 14 42 ))') ;
INSERT INTO lake VALUES (2, GEOMFROMTEXT('POLYGON(( 14 42, 18 18, 36 12, 58 24, 34 24, 36 44, 24 56, 14 42 ), ( 20 39, 28 27, 30 35, 28 41, 22 45, 20 39 ))')) ;
INSERT INTO lake VALUES (3, POLYFROMTEXT('POLYGON(( 8 6, 22 4, 38 14, 34 36, 22 46, 17 44, 22 28, 16 22, 8 28, 2 27, 4 26, 8 6 ))')) ;
INSERT INTO lake VALUES (4, GEOMETRY'POLYGON EMPTY');
INSERT INTO lake VALUES (5, GEOMFROMTEXT('POLYGON EMPTY'));
INSERT INTO lake VALUES (6, POLYFROMTEXT('POLYGON EMPTY'));
MULTIPOLYGON#
Syntax#
MULTIPOLYGON( ( (x1 y1, x2 y2, x3 y3 [, xn yn ]) [, (x1 y1, x2 y2, x3 y3 [, xn yn ] ) ] ) [ ( (x1 y1, x2 y2, x3 y3 [, xn yn ]) [, (x1 y1, x2 y2, x3 y3 [, xn yn ] ) ] ) ] ) )
Description#
A MultiPolygon is a collection class that consists of Polygons as its constituent elements. It is a two-dimensional simple unclosed spatial object comprising one or more POLYGONs as its elements. The interior of the spatial object is the surfaces defined by the constituent POLYGONs. The exterior is the surrounding surface, not including the POLYGONs. Its boundary is defined by the LINESTRINGs that define exterior and interior rings of the constituent POLYGONs.
Characteristics#
- A MULTIPOLYGON is a simple closed spatial object.
- The boundary of a MULTIPOLYGON is a set of LINESTRINGs.
The following figure shows examples of MULTIPOLYGONs. The third MultiPolygon doesn't comprise an exterior Polygon and an interior Polygon, but two Polygons, one of which is above the other.
[Figure 2-6] Examples of MULTIPOLYGONs
Limitation#
The intersection of the interiors of two Polygons that comprise a MultiPolygon is an empty set.
∀ M ∈ MultiPolygon, ∀ Pi, Pj ∈ M.Geometries(), i≠ j, Interior(Pi) ∩ Interior(Pj) = Ø
Two LINESTRINGs that form all or part of the boundary of a MULTIPOLYGON can only meet each other at individual POINTS, and both LINESTRINGs must have POINTs defined where they meet.
∀ M ∈ MultiPolygon, ∀ Pi, Pj ∈ M.Geometries(), ∀ ci ∈ Pi.Boundaries(), cj ∈ Pj.Boundaries() ,ci ∩ cj = {p1, ....., pk │ pi ∈ Point, 1 <= i <= k}
A MULTIPOLYGON cannot have a segment protruding from it, nor can it have within any of its constituent POLYGONs a point that is not part of a closed LINESTRING.
∀ M ∈ MultiPolygon, M = Closure(Interior(M))
The following figure shows objects that do not satisfy the above criteria, and thus cannot be represented as MULTIPOLYGONs.
[Figure 2-7] Examples of spatial objects that cannot be represented as MULTIPOLYGONs
Examples#
CREATE TABLE lake ( id INTEGER, obj GEOMETRY ) ;
INSERT INTO lake VALUES (1, GEOMETRY'MULTIPOLYGON(((8 6, 22 4, 38 14, 34 36, 22 46, 17 44, 22 28, 16 22, 8 28, 2 27, 4 26, 8 6 )), (( 4 35, 8 31, 14 41, 14 53, 10 55, 8 45, 4 43, 4 35 )))') ;
INSERT INTO lake VALUES (2, GEOMFROMTEXT('MULTIPOLYGON((( 8 28, 14 14, 32 18, 36 32, 26 46, 14 42, 8 28 ), ( 18 30, 20 20, 28 26, 22 38, 18 30 )), (( 24 54, 36 38, 44 44, 42 52, 34 56, 24 54 )))')) ;
INSERT INTO lake VALUES (3, MPOLYFROMTEXT('MULTIPOLYGON((( 8 34, 6 12, 26 6, 34 26, 16 26, 8 34 )), (( 8 35, 22 36, 34 27, 38 36, 24 48, 8 35 )))')) ;
INSERT INTO lake VALUES (4, GEOMETRY'MULTIPOLYGON EMPTY');
INSERT INTO lake VALUES (5, GEOMFROMTEXT('MULTIPOLYGON EMPTY'));
INSERT INTO lake VALUES (6, MPOLYFROMTEXT('MULTIPOLYGON EMPTY'));
GEOMETRYCOLLECTION#
Syntax#
GEOMETRYCOLLECTION( Point \| LineString \| Polygon \| MultiPoint \| MultiLineString \| MultiPolygon, [Point \| LineString \| Polygon \| MultiPoint | MultiLineString \| MultiPolygon ] )
Point#
This is a POINT type object
LineString#
This is a LINESTRING type object
Polygon#
This is a POLYGON type object
MultiPoint#
This is a MULTIPOINT type object
MultiLineString#
This is a MULTILINESTRING type object
MultiPolygon#
This is a MULTIPOLYGON type object
Description#
A GEOMETRYCOLLECTION is a set of one or more spatial objects.
A GEOMETRYCOLLECTION is a spatial object that has a maximum of two dimensions and consists of two or more spatial objects as its elements. These elements cannot themselves be other GEOMETRYCOLLECTION type objects, meaning that the GEOMETRYCOLLECTION type cannot be nested. The interior of the spatial object is the collective interiors of all of the constituent spatial objects, and its boundary consists of the boundaries of all the spatial objects it contains. The exterior is the surrounding surface, not including the elements that the GEOMETRYCOLLECTION consists o
Limitation#
The criteria for a GEOMETRYCOLLECTION object depend on the criteria for each of the spatial objects that comprise the GEOMETRYCOLLECTION.
Examples#
CREATE TABLE test1 ( id INTEGER, obj GEOMETRY ) ;
INSERT INTO test1 VALUES (1, GEOMETRY'GEOMETRYCOLLECTION( POINT( 6 16 ), LINESTRING( 4 26, 16 28, 14 16, 24 12 ))') ;
INSERT INTO test1 VALUES (2, GEOMFROMTEXT('GEOMETRYCOLLECTION( LINESTRING( 4 26, 16 28, 14 16, 24 12 ), POLYGON(( 2 30, 18 32, 24 16, 36 26, 24 46, 8 44, 2 30 )))')) ;
INSERT INTO test1 VALUES (3, GEOMCOLLFROMTEXT ('GEOMETRYCOLLECTION (POINT( 6 22 ), LINESTRING( 4 54, 4 38, 8 28, 10 16, 18 8, 28 4 ), POLYGON(( 8 44, 12 32, 16 16, 24 12, 34 16, 32 34, 26 44, 16 54, 8 44 ), ( 16 38, 20 30, 22 20, 28 22, 26 32, 20 42, 16 38 )))')) ;
INSERT INTO test1 VALUES (4, GEOMETRY'GEOMETRYCOLLECTION EMPTY');
INSERT INTO test1 VALUES (5, GEOMFROMTEXT('GEOMETRYCOLLECTION EMPTY'));
INSERT INTO test1 VALUES (6, GEOMCOLLFROMTEXT('GEOMETRYCOLLECTION EMPTY'));
The Format of the GEOMETRY Data Type#
In Altibase, the GEOMETRY data type can be represented using any of the three ways described below:
| Format | Description |
|---|---|
| WKT(Well-Known Text) | A text format in which a spatial object is represented using letters and numbers. This allows it to be processed directly within SQL applications or other similar applications. |
| WKB(Well-Known Binary) | A format in which a spatial object is represented in binary form. It was designed for the purpose of efficiently transferring and performing operations on GEOMETRY type data. |
| EWKT(Extended Well-Known Text) | A text format in which Spatial Reference Identifier (SRID) information representing spatial objects has been added to the WKT format. |
| EWKB(Extended Well-Known Binary) | A text format in which Spatial Reference Identifier (SRID) information representing spatial objects is added to the WKB format. |
| Internal Binary | A format in which data is stored within Altibase. It was designed for the purpose of efficiently managing and performing spatial operations on spatial data. Data saved in the internal binary format of Altibase can only be manipulated using the C API. The C API will be described in Spatial Application Development. |
WKT (Well-Known Text)#
WKT (Well-known Text) is a format for representing a spatial object using letters and numbers. WKT is defined using Backus-Naur Form (BNF) notation, as shown below:
<Geometry Tagged Text> : =
<Point Tagged Text>
｜ <LineString Tagged Test>
｜ <Polygon Tagged Test>
｜ <MultiPoint Tagged Test>
｜ <MultiLineString Tagged Test>
｜ <MultiPolygon Tagged Test>
｜ <GeometryCollection Tagged Test>
<Point Tagged Test> : = POINT <Point Text>
<LineString Tagged Text> : = LINESTRING <LineString Test>
<Polygon Tagged Text> := POLYGON <Polygon Text>
<Multipoint Tagged Text> : = MULTIPOINT (Multipoint Text>
<MultiLineString Tagged Text> : = MULTILINESTRING (MultiLineString Text>
<MultiPolygon Tagged Text> : = MULTIPOLYGON <MultiPolygon Text>
<GeometryCollection Tagged Test> : = GEOMETRYCOLLECTION <GeometryCollection Text>
<Point Text> : = ( <Point> )
<Point> : = <x> <y>
<x> : = double precision literal
<y> : = double precision literal
<LineString Text> : = ( <Point > {, <Point > }＊)
<Polygon Text> : = ( <LineString Text > {, < LineString Text > }＊)
<MultiPoint Text> : = ( <Point Text > {, <Point Text > }＊)
<MultiLineString Text> : = ( <LineString Test > {, < LineString Text > }＊)
<MultiPolygon Text> : = ( < Polygon Text > {, < Polygon Text > }＊)
<GeometryCollection Text> : = ( <Geometry Tagged Text > {, <Geometry Tagged Text> }＊)
| Format | WKT Expression | Description |
|---|---|---|
| Point | POINT (10 10) | A Point |
| LineString | LINESTRING (10 10, 20 20, 30 40) | A LineString having three points |
| Polygon | POLYGON ( (10 10, 10 20, 20 20, 20 15, 10 10) ) | A Polygon consisting of one exterior ring and zero interior rings |
| MultiPoint | MULTIPOINT (10 10, 20 20) | A MultiPoint comprising two Points |
| MultiLineString | MULTILINESTRING ((10 10, 20 20), (15 15, 30 15)) | A MultiLineString comprising two LineStrings |
| MultiPolygon | `MULTIPOLYGON (((10 10, 10 20, 20 20, 20 15, 10 10)), ((60 60, 70 70, 80 60, 60 60 ) )) | A MultiPolygon comprising two Polygons |
| GeometryCollection | `GEOMETRYCOLLECTION ( POINT (10 10), POINT (30 30), LINESTRING (15 15, 20 20)) | A collection of spatial objects comprising two points and one LineString |
Examples#
The examples of spatial data shown in WKT format above are shown graphically below:
| WKT format | Coordinate Plane |
|---|---|
| Point |  |
| LineString |  |
| Polygon |  |
| MultiPoint |  |
| MultiLineString |  |
| MultiPolygon |  |
| GeometryCollection |  |
WKB (Well-Known Binary)#
WKB (Well-known Binary) is a format in which a spatial object is represented in binary form.
This is the binary form put forth in the OGC Standards. It is used to ensure data compatibility between heterogeneous spatial DBMSs.
The WKB format represents a spatial object using UNSIGNED INTEGER and DOUBLE type numerical data. It is encoded using either NDR or XDR, which differ from each other with respect to byte order (Endian).
The byte order of XDR, which stands for "External Data Representation", is Big Endian, whereas that of NDR, which stands for "Network Data Representation", is Little Endian. The UNSIGNED INTEGER data type is a 32-bit data type whose value can be a positive integer in the range from 0 to 4294967295. DOUBLE is a 64-bit double precision data type that follows the IEEE 754 double precision format for representing double precision numbers.
The WKB representation of spatial objects is shown below. The basic type is the POINT, which is represented using two DOUBLE type numbers. The representations of all other kinds of spatial objects are based on the definition of the POINT, or on the definitions of other spatial objects that are themselves defined based on the definition of the POINT.
/ / Basic Type definitions
/ / byte : 1 byte
/ / unit32 : 32 bit unsigned integer (4 bytes)
/ / double : double precision number (8 bytes)
/ / Building Blocks : Point, LinearRing
Point {
double x ;
double y ;
} ;
LinearRing {
unit32 numPoints ;
Point points{numPoints} ;
}
enum wkbGeometryType {
wkbPoint = 1,
wkbLineString = 2,
wkbPolygon = 3,
wkbMultiPoint = 4,
wkbMultiLineString = 5,
wkbMultiPolygon = 6,
wkbGeometryCollection = 7
} ;
enum wkbByteorder {
wkbXDR = 0 ; / / Big Endian
wkbNDR = 1 ; / / Little Endian
} ;
WKBPoint {
byte byteOrder ;
unit32 wkbType ; / / 1
Point point ;
}
WKBLineString {
byte byteOrder ;
unit32 wkbType ; / / 2
unit32 numPoints ;
Point points{numPoints} ;
}
WKBPolygon {
byte byteOrder ;
unit32 wkbType ; / / 3
unit32 numRings ;
LinearRing rings{numRings} ;
}
WKBMultiPoint {
byte byteOrder ;
unit32 wkbType ; / / 4
unit32 num_wkbPoints ;
WKBPoint WKBpoints{num_wkbPoints} ;
}
WKBMultiLineString {
byte byteOrder ;
unit32 wkbType ; / / 5
unit32 num_wkbLineStrings ;
WKBLineString WKBLineStrings{num_wkbLineStrings} ;
}
WKBMultiPolygon {
byte byteOrder ;
unit32 wkbType ; / / 6
unit32 num_wkbPolygons ;
WKBPolygon wkbPolygons{num_wkbPolygons} ;
}
WKBGeometry {
union {
WKBPoint point ;
WKBLineString linestring ;
WKBPolygon polygon ;
WKBGeometryCollection collection ;
WKBMultiPoint mpoint ;
WKBMultiLineString mlinestring ;
WKBMultiPolygon mpolygon ;
}
} ;
WKBGeometryCollection {
byte byte_order ;
unit32 wkbType ; / / 7
unit32 num_wkbGeometries ;
WKBGeometry wkbGeometries{num_wkbGeometries} ;
} ;
[Figure 2‑8] Example of WKB Structure
In this example, the Little Endian (NDR) byte order is used, and a POLYGON with one exterior ring and one interior ring is described. Each of the exterior and interior rings consists of three points.
EWKT (Extended Well-Known Text)#
EWKT indicates SRID information in addition to WKT format. Except for the notation of SRID information, the notation is identical to the WKT format. The EWKT format is not an OpenGIS standard and an example of spatial data described using the EWKT format is as follows.
| Format | EWKT Expression | SRID | Description |
|---|---|---|---|
| Point | SRID=4326;POINT(10 10) | 4326 | One Point; SRID is 4326 |
| LineString | SRID=100;LINESTRING(10 10, 20 20, 30 40) | 100 | 3-point linestring; SRID is 100 |
| Polygon | SRID=-999;POLYGON( (10 10, 10 20, 20 20, 20 15, 10 10) ) | -999 | A polygon consisting of one outer ring and zero inner rings; SRID is -999 |
| MultiPoint | SRID=0;MULTIPOINT(10 10, 20 20) | 0 | Multipoint with two points; SRID is 0 |
EWKB (Extended Well-Known Binary)#
EWKB represents SRID information in addtion to the WKB format. Except for the notation of SRID information, the notation is identical to the WKB format. The EWKB format is not an OppenGIS standard. The notation of the EWKB format is almost the same as that of the WKB format, but after the byte order (one byte; either NDR or XDR) and the GEOMETRY data type (four bytes; POINT, MULTIPOINT, etc.), the four-byte SRID is written differently. After the SRID notation, the object information is expressed in binary form similar to the WKB format.
DDL For Geometry#
This section will describe with examples the syntax and features of SQL DDL statements used to create database objects. A detailed description will be provided only for aspects directly related to the GEOMETRY data type. For a more detailed description of each SQL statement described below, please refer to the Altibase SQL Reference.
CREATE TABLE#
Syntax#
CREATE TABLE table_name (
column_name GEOMETRY [(precision)] [(SRID srid)]);
Description#
This is is used to specify the maximum size of the column to be created. The allowable range is from 16 bytes to 100 megabytes. If not specified, the column will default to a size of 32,000 bytes. Any attempt to INSERT a spatial object that occupies more space than the precision specified here will fail.
This specifies the SRID of the column to be created. A 4-byte integer can be used, which will default to 0 if not specified.
For more detailed information about the CREATE TABLE statement, please refer to the SQL Reference.
Limitations#
The following limitations apply to the use of the GEOMETRY column:
- A GEOMETRY column cannot be used as a primary key.
- The UNIQUE constraint cannot be specified for a GEOMETRY column.
Examples#
Create a table having an id column, whose type is INTEGER, and an obj column, whose type is GEOMETRY.
iSQL> CREATE TABLE t1 ( id INTEGER, obj GEOMETRY ) ;
Create success.
Create a table having an id column, whose type is INTEGER, as well as a GEOMETRY column named obj having a maximum size of 128 bytes.
iSQL> CREATE TABLE t2 ( id INTEGER, obj GEOMETRY (128) ) ;
Create success.
Create a table with a GEOMETRY column obj with an interger column ID and SRID 100.
iSQL> CREATE TABLE t3 ( id INTEGER, obj GEOMETRY SRID 100) ;
Create success.
CREATE INDEX#
Syntax#
CREATE INDEX index_name ON table_name ( column_name ) [INDEXTYPE IS RTREE];
Description#
When an index is created on a column using the GEOMETRY data type, there is no need to specify an INDEXTYPE because an R-Tree index is used automatically. If a user attempts to set the INDEXTYPE to BTREE, an error will occur.
For more detailed information about CREATE INDEX, please refer to the SQL Reference.
Limitations#
- The UNIQUE option cannot be specified for the index.
- The use of a GEOMETRY type column in a so-called "compound index" is not supported. That is, if an index is created on the basis of two or more columns, none of those columns can be a GEOMETRY type column.
- R-Tree indexes can be based on GEOMETRY type columns only
Examples#
Create an R-Tree index idx_t1 based on the GEOMETRY type column obj in table t1
iSQL> CREATE INDEX idx_t1 ON t1 ( obj ) ;
Create success.
Create an R-Tree index idx_t2 based on the GEOMETRY type column obj in table t2
iSQL> CREATE INDEX idx_t2 ON t2 ( obj ) INDEXTYPE IS RTREE ;
Create success.
The following example shows that an attempt to create an R-Tree index on the basis of a non-GEOMETRY type column will fail.
iSQL> CREATE INDEX idx_t3 ON t3 ( id ) INDEXTYPE IS RTREE ;
[ERR-31246 : cannot create index on the datatype.]
Spatial Functions in Altibase#
This section describes the spatial functions that are supported for use in Altibase.
Types of Spatial Functions#
The spatial functions that are available in Altibase can be broadly classified as follows based on their characteristics:
-
Basic Functions
These functions are used to check the values of attributes, both general attributes and those specific to the GEOMETRY type. -
Spatial Analysis Functions
These functions are used to perform various analytical tasks on GEOMETRY type data -
Spatial Object Creationg Functions
These functions are used to create spatial objects in WKT or WKB format, rather than in the internal storage format of Altibase.
Basic Spatial Functions#
DIMENSION#
Syntax#
DIMENSION( GEOMETRY )
Description#
This function returns the minimum number of dimensions that are needed in order to represent a spatial object.
This function returns -1 if the spatial object is EMPTY, 0 for POINT and MULTIPOINT type objects, 1 for LINESTRING and MULTILINESTRING type objects, and 2 for POLYGON and MULTIPOLYGON type objects.
If this function is executed on a GEOMETRYCOLLECTION type object comprising several different types of spatial objects as its constituent elements, it returns the number of dimensions needed to represent the constituent element having the largest number of dimensions.
Return Type#
INTEGER
Example#
iSQL> SELECT F1, DIMENSION(F2) FROM TB1;
F1 DIMENSION(F2)
-----------------------------
100
101 0
102 0
103 1
104 1
105 2
106 2
107 2
108 1
109 -1
10 rows selected.
GEOMETRYTYPE#
Syntax#
GEOMETRYTYPE( GEOMETRY )
Description#
This function returns the name of the subtype of a GEOMETRY object. The subtype name is one of the following, returned in string form:
-
NULL
-
EMPTY4
-
POINT
-
LINESTRING
-
POLYGON
-
MULTIPOINT
-
MULTILINESTRING
-
MULTIPOLYGON
-
GEOMETRYCOLLECTION
ST_GEOMETRYTYPE is a function equivalent to GEOMETRYTYPE.
Return Type#
VARCHAR
Example#
iSQL> SELECT F1, GEOMETRYTYPE(F2) FROM TB1;
F1 GEOMETRYTYPE(F2)
-------------------------------------------------
100
101 POINT
102 MULTIPOINT
103 LINESTRING
104 MULTILINESTRING
105 POLYGON
106 POLYGON
107 MULTIPOLYGON
108 GEOMETRYCOLLECTION
109 EMPTY
10 rows selected.
ENVELOPE#
Syntax#
ENVELOPE( GEOMETRY )
Description#
This function returns the Minimum Bounding Rectangle (MBR) for a spatial object in the form of a POLYGON. This POLYGON is defined by the corner points of the bounding rectangle, namely (MINX, MINY), (MAXX, MINY), (MAXX, MAXY), (MINX, MAXY) and (MINX, MINY).
ST_ENVELOPE is a function equivalent to ENVELOPE.
Return Type#
GEOMETRY
Example#
SELECT F1, ASTEXT(ENVELOPE(F2)) FROM TB1 WHERE GEOMETRYTYPE(F2) = 'POLYGON';
F1 ASTEXT(ENVELOPE(F2))
-----------------------------------------------------------------------------
105 POLYGON((0 0, 0 10, 10 10, 10 0, 0 0))
106 POLYGON((3 5, 3 9, 7 9, 7 5, 3 5))
2 rows selected.
ASTEXT#
Syntax#
ASTEXT( GEOMETRY[,precision] )
Description#
This function returns a spatial object in WKT (Well-Known Text) format.
The precision argument can be used to set the maximum length of the WKT. The default value is 256 bytes. This argument can be set anywhere in the range from 32 to 32,000.
Return Type#
VARCHAR
Example#
SELECT F1, ASTEXT(F2) FROM TB1;
F1 ASTEXT(F2)
-------------------------------------------------------------------------------------------------
100
101 POINT(1 1)
102 MULTIPOINT(1 1, 2 2)
103 LINESTRING(1 1, 2 2)
104 MULTILINESTRING((1 1, 2 2), (3 3, 4 5))
105 POLYGON((0 0, 10 0, 10 10, 0 10, 0 0))
106 POLYGON((3 5, 7 5, 7 9, 3 9, 3 5), (4 6, 4 8, 6 8, 6 6, 4 6))
107 MULTIPOLYGON(((1 1, 2 1, 2 2, 1 2, 1 1)), ((3 3, 3 5, 5 5, 5 3, 3 3)))
108 GEOMETRYCOLLECTION( POINT(1 1) , LINESTRING(2 2, 3 3) )
109 EMPTY
10 rows selected.
ASBINARY#
Syntax#
ASBINARY( GEOMETRY )
Description#
This function returns a spatial object in WKB (Well-Known Binary) format.
Return Type#
BINARY
Example1#
SELECT F1, ASTEXT(GEOMFROMWKB(ASBINARY(F2))) FROM TB1;
F1 ASTEXT(GEOMFROMWKB(ASBINARY(F2)))
-------------------------------------------------------------------------------------------------
100
101 POINT(1 1)
102 MULTIPOINT(1 1, 2 2)
103 LINESTRING(1 1, 2 2)
104 MULTILINESTRING((1 1, 2 2), (3 3, 4 5))
105 POLYGON((0 0, 10 0, 10 10, 0 10, 0 0))
106 POLYGON((3 5, 7 5, 7 9, 3 9, 3 5), (4 6, 4 8, 6 8, 6 6, 4 6))
107 MULTIPOLYGON(((1 1, 2 1, 2 2, 1 2, 1 1)), ((3 3, 3 5, 5 5, 5 3, 3 3)))
108 GEOMETRYCOLLECTION( POINT(1 1) , LINESTRING(2 2, 3 3) )
109 EMPTY
10 rows selected.
ASEWKT#
Syntax#
ASEWKT( GEOMETRY[,precision] )
Description#
This function returns the spatial object in the form of EWKT (Extended-Well Known Text). Precision can be used to control the maximum length of the WKT. The default value is 256 bytes, and can be used up to a minimum of 32 and a maximum is 32000.
Return Type#
VARCHAR
Example#
iSQL> SELECT F1, ASEWKT(F2, 40) FROM TB1;
F1 ASEWKT(F2, 40)
---------------------------------------------------------
1 SRID=0;POINT(2 2)
2 SRID=100;POINT(2 2)
3 SRID=101;POINT(2 2)
4 SRID=102;POINT(2 2)
5 SRID=103;POINT(2 2)
5 rows selected.
ASEWKB#
Syntax#
ASEWKB( GEOMETRY )
Description#
Spatial objects are returned in EWKB(Extended Well-Known Binary) expression format.
Return Type#
BINARY
Example#
iSQL> SELECT F1, ASEWKT(GEOMFROMEWKB(ASEWKB(F2)), 40) FROM TB1;
F1 ASEWKT(GEOMFROMEWKB(ASEWKB(F2)), 40)
---------------------------------------------------------
1 SRID=0;POINT(2 2)
2 SRID=100;POINT(2 2)
3 SRID=101;POINT(2 2)
4 SRID=102;POINT(2 2)
5 SRID=103;POINT(2 2)
5 rows selected.
ISEMPTY#
Syntax#
ISEMPTY( GEOMETRY )
Description#
Returns 1 if a spatial object does not have any coordinates. Otherwise, it returns 0 (zero).
Return Type#
INTEGER
Example#
iSQL> SELECT F1, ISEMPTY(F2) FROM TB1;
F1 ISEMPTY(F2)
---------------------------
100
101 0
102 0
103 0
104 0
105 0
106 0
107 0
108 0
109 1
10 rows selected.
ISSIMPLE#
Syntax#
ISSIMPLE( GEOMETRY )
Description#
This function returns 1 if a GEOMETRY object does not have any exceptional points, such as points of intersection or contact. If the GEOMETRY object has any such points, it returns 0 (zero).
The POINT, POLYGON and MULTIPOLYGON subtypes are always simple. The LINESTRING subtype is simple as long as its constituent segments do not intersect each other. The MULTIPOINT subtype is simple as long as no two of its constituent points have the same coordinates. The MULTILINESTRING type is simple if all of its LINESTRINGs are simple and they intersect only at their boundary points.
Return Type#
INTEGER
Example#
iSQL> SELECT F1, ISSIMPLE(F2) FROM TB1;
F1 ISSIMPLE(F2)
----------------------------
100
101 1
102 1
103 1
104 1
105 1
106 1
107 1
108 1
109 1
10 rows selected.
ISVALID#
Syntax#
ISVALID( GEOMETRY )
Description#
This function allows you to test whether a GEOMETRY object meets its requirements for validity.
If a GEOMETRY object meets all of the criteria for validity for that subtype, this function returns 1. If the object in question does not meet all of its criteria for validity, this function returns 0.
Be careful to avoid inserting invalid GEOMETRY objects into the DBMS, as this will result in errors or unpredictable results.
Return Value#
INTEGER
Example#
iSQL> SELECT F1, ISVALID(F2) FROM TB1;
F1 ISVALID(F2)
-----------------------------
100 1
101 1
102 1
103 1
104 1
105 1
106 1
107 1
108 1
109 1
10 rows selected.
ISVALIDHEADER#
Syntax#
ISVALIDHEADER( GEOMETRY )
Description#
This function allows you to test whether a GEOMETRY object meets its requirements for validity by checking only the header information of the object.
If a GEOMETRY object meets all of the criteria for validity for that subtype, this function returns 1. If the object in question does not meet all of its criteria for validity, this function returns 0. Be careful to avoid inserting invalid GEOMETRY objects into the DBMS, as this will result in errors or unpredictable results.
Return Type#
INTEGER
Example#
iSQL> SELECT F1, ISVALIDHEADER(F2) FROM TB1;
F1 ISVALIDHEADER(F2)
-----------------------------
100 1
101 1
102 1
103 1
104 1
105 1
106 1
107 1
108 1
109 1
10 rows selected.
BOUNDARY#
Syntax#
BOUNDARY( GEOMETRY )
Description#
This function returns the boundary of a GEOMETRY object.
If the argument is a GEOMETRY object whose subtype is POINT, MULTIPOINT, closed LINESTRING, or closed MULTILINESTRING, or if it is an EMPTY object, this function returns EMPTY. If the argument is a POLYGON having one or more interior rings or a MULTIPOLYGON comprising such POLYGONs, this function returns multiple objects.
Return Type#
GEOMETRY
Example#
SELECT F1, ASTEXT(BOUNDARY(F2)) FROM TB1;
F1 ASTEXT(BOUNDARY(F2))
-------------------------------------------------------------------------------------------------
100
101 EMPTY
102 EMPTY
103 MULTIPOINT(1 1, 2 2)
104 MULTIPOINT(1 1, 2 2, 3 3, 4 5)
105 LINESTRING(0 0, 10 0, 10 10, 0 10, 0 0)
106 MULTILINESTRING((3 5, 7 5, 7 9, 3 9, 3 5), (4 6, 4 8, 6 8, 6 6, 4 6))
107 MULTILINESTRING((1 1, 2 1, 2 2, 1 2, 1 1), (3 3, 3 5, 5 5, 5 3, 3 3))
108 EMPTY
109 EMPTY
10 rows selected.
X (COORDX)#
Syntax#
X( GEOMETRY )
or
COORDX( GEOMETRY )
Description#
This function returns the x coordinate of a GEOMETRY object whose subtype is POINT.
This function returns an error if the subtype of the GEOMETRY object is not POINT.
Return Type#
DOUBLE
Example#
iSQL> SELECT F1, COORDX(F2) FROM TB1 WHERE GEOMETRYTYPE(F2) = 'POINT';
F1 COORDX(F2)
--------------------------------------
101 1
1 row selected.
iSQL> SELECT F1, X(F2) FROM TB1;
F1 X(F2)
--------------------------------------
100
101 1
[ERR-A1019 : Not applicable object type]
2 rows selected.
Y (COORDY)#
Syntax#
Y( GEOMETRY )
or
COORDY( GEOMETRY )
Description#
This function returns the y coordinate of a GEOMETRY object whose subtype is POINT.
This function returns an error if the subtype of the GEOMETRY object is not POINT.
Return Type#
DOUBLE
Example#
iSQL> SELECT F1, COORDY(F2) FROM TB1 WHERE GEOMETRYTYPE(F2) = 'POINT';
F1 COORDY(F2)
--------------------------------------
101 1
1 row selected.
iSQL> SELECT F1, Y(F2) FROM TB1;
F1 Y(F2)
--------------------------------------
100
101 1
[ERR-A1019 : Not applicable object type]
2 rows selected.
MINX#
Syntax#
MINX( GEOMETRY )
Description#
This function returns the minimum x coordinate value for the minimum bounding rectangle of the GEOMETRY object in question. If the subtype of the GEOMETRY object is POINT, this function simply returns the x coordinate of the POINT.
Note: To determine the coordinate values for the minimum bounding rectangle for the results of a query, use the MINX, MINY, MAXX, and MAXY functions together with the MIN and MAX aggregate functions.
SELECT MIN(MINX(F2)), MIN(MINY(F2)), MAX(MAXX(F2)), MAX(MAXY(F2) FROM TB1;
Return Value#
DOUBLE
Example#
iSQL> SELECT F1, MINX(F2) FROM TB1;
F1 MINX(F2)
-----------------------------
100
101 1
102 1
103 1
104 1
105 0
106 3
107 1
108 1
109
10 rows selected.
MINY#
Syntax#
MINY( GEOMETRY )
Description#
This function returns the minimum y coordinate value for the minimum bounding rectangle of the GEOMETRY object in question. If the subtype of the GEOMETRY object is POINT, this function simply returns the y coordinate of the POINT.
Return Type#
DOUBLE
Example#
iSQL> SELECT F1, MINY(F2) FROM TB1;
F1 MINY(F2)
-----------------------------
100
101 1
102 1
103 1
104 1
105 0
106 5
107 1
108 1
109
10 rows selected.
MAXX#
Syntax#
MAXX( GEOMETRY )
Description#
This function returns the maximum x coordinate value for the minimum bounding rectangle of the GEOMETRY object in question. If the subtype of the GEOMETRY object is POINT, this function simply returns the x coordinate of the POINT.
Return Type#
DOUBLE
Example#
iSQL> SELECT F1, MAXX(F2) FROM TB1;
F1 MAXX(F2)
-----------------------------
100
101 1
102 2
103 2
104 4
105 10
106 7
107 5
108 3
109
10 rows selected.
MAXY#
Syntax#
MAXY( GEOMETRY )
Description#
This function returns the maximum y coordinate value for the minimum bounding rectangle of the GEOMETRY object in question. (+If the subtype of the GEOMETRY object is POINT, this function simply returns the y coordinate of the POINT.
Return Type#
DOUBLE
Example#
iSQL> SELECT F1, MAXY(F2) FROM TB1;
F1 MAXY(F2)
-----------------------------
100
101 1
102 2
103 2
104 5
105 10
106 9
107 5
108 3
109
10 rows selected.
GEOMETRYLENGTH#
Syntax#
GEOMETRYLENGTH( GEOMETRY )
Description#
This function returns the length of a LINESTRING or MULTILINESTRING type GEOMETRY object.
If the subtype of the GEOMETRY type is not LINESTRING or MULTILINESTRING, this function returns an error.
Return Type#
DOUBLE
Example#
SELECT F1
, GEOMETRYLENGTH(F2)
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'LINESTRING'
OR GEOMETRYTYPE(F2) = 'MULTILINESTRING';
F1 GEOMETRYLENGTH(F2)
--------------------------------------
103 1.4142135623731
104 3.65028153987288
2 rows selected.
iSQL> SELECT F1, GEOMETRYLENGTH(F2) FROM TB1;
F1 GEOMETRYLENGTH(F2)
--------------------------------------
100
[ERR-A1019 : Not applicable object type]
1 row selected.
STARTPOINT#
Syntax#
STARTPOINT( GEOMETRY )
Description#
This function returns the start point of a LINESTRING.
If the subtype of the GEOMETRY type argument is not LINESTRING, this function returns an error.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(STARTPOINT(F2))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'LINESTRING';
F1 ASTEXT(STARTPOINT(F2))
-------------------------------------------------
103 POINT(1 1)
1 row selected.
iSQL> SELECT F1, ASTEXT(STARTPOINT(F2)) FROM TB1;
F1 ASTEXT(STARTPOINT(F2))
-------------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
ENDPOINT#
Syntax#
ENDPOINT( GEOMETRY )
Description#
This function returns the end point of a LINESTRING.
If the subtype of the GEOMETRY type argument is not LINESTRING, this function returns an error.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(ENDPOINT(F2))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'LINESTRING';
F1 ASTEXT(ENDPOINT(F2))
---------------------------------------------
103 POINT(2 2)
1 row selected.
iSQL> SELECT F1, ASTEXT(ENDPOINT(F2)) FROM TB1;
F1 ASTEXT(ENDPOINT(F2))
-----------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
ISCLOSED#
Syntax#
ISCLOSED( GEOMETRY )
Description#
This function returns 1 if LINESTRING is closed, that is, if the following expression is true:
StartPoint(geometry) = EndPoint(geometry)
If the start point and the end point are not the same, that is, if the above expression is false, this function returns 0 (zero).
If the subtype of the GEOMETRY type argument is not LINESTRING or MULTILINESTRING, this function returns an error.
Return Type#
INTEGER
Example#
SELECT F1
, ISCLOSED(F2)
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'LINESTRING'
OR GEOMETRYTYPE(F2) = 'MULTILINESTRING';
F1 ISCLOSED(F2)
----------------------------
103 0
104 0
2 rows selected.
iSQL> SELECT F1, ISCLOSED(F2) FROM TB1;
F1 ISCLOSED(F2)
----------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
ISRING#
Syntax#
ISRING( GEOMETRY )
Description#
This function returns 1 if the LINESTRING or MULTILINESTRING type argument is simple and closed. The test of whether a LINESTRING is closed is as follows:
StartPoint(geometry) = EndPoint(geometry)
If the input LINESTRING or MULTILINESTRING is not simple, not closed, or neither simple nor closed, this function returns 0 (zero).
If the subtype of the GEOMETRY type argument is not a LINESTRING or a MULTILINESTRING, this function outputs an error.
Return Type#
INTEGER
Example#
SELECT F1
, ISRING(F2)
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'LINESTRING'
OR GEOMETRYTYPE(F2) = 'MULTILINESTRING';
F1 ISRING(F2)
---------------------------
103 0
104 0
2 rows selected.
iSQL> SELECT F1, ISRING(F2) FROM TB1;
F1 ISRING(F2)
---------------------------
100
[ERR-A1019 : Not applicable object type]
1 row selected.
ST_ISCOLLECTION#
Syntax#
ST_ISCOLLECTION( GEOMETRY )
Description#
This function returns 1 if the spatial object, which is the parameter, is MULTIPOINT, MULTILINESTRING, MULTIPOLYGON or GEOMETRYCOLLECTION. If not, 0 is returned.
Return Type#
INTEGER
Example#
iSQL> SELECT ST_ISCOLLECTION(GEOMETRY'POINT(1 1)');
ST_ISCOLLECTION(GEOMETRY'POINT(1 1)')
----------------------------------------
0
1 row selected.
iSQL> SELECT ST_ISCOLLECTION(GEOMETRY'MULTIPOINT(1 1)');
ST_ISCOLLECTION(GEOMETRY'MULTIPOINT(1 1)')
---------------------------------------------
1
1 row selected.
iSQL> SELECT ST_ISCOLLECTION(GEOMETRY'GEOMETRYCOLLECTION(POINT(1 1), LINESTRING(2 2, 3 3))');
ST_ISCOLLECTION(GEOMETRY'GEOMETRYCOLLECTIO
---------------------------------------------
1
1 row selected.
NUMPOINTS#
Syntax#
NUMPOINTS( GEOMETRY )
Description#
This function returns the number of POINTs that comprise a GEOMETRY object.
Return Type#
INTEGER
Example#
iSQL> select f1, numPoints(f2) from TB1;
F1 NUMPOINTS(F2)
-----------------------------
100
101 1
102 2
103 2
104 4
105 5
106 10
107 10
108 3
[ERR-A1019 : Inapplicable object type]
9 rows selected.
POINTN#
Syntax#
POINTN( GEOMETRY, N )
Description#
This function returns the Nth POINT that consists of the input LINESTRING type GEOMETRY object.
This function outputs an error if N is 0 (zero) or negative, if N is greater than the number of POINTs in LINESTRING, or if the subtype of the GEOMETRY type argument is not LINESTRING.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(POINTN(F2, 2))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'LINESTRING';
F1 ASTEXT(POINTN(F2,2))
---------------------------------------------
103 POINT(2 2)
1 row selected.
iSQL> SELECT F1, ASTEXT(POINTN(F2, 1)) FROM TB1;
F1 ASTEXT(POINTN(F2,1))
------------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
AREA#
Syntax#
AREA( GEOMETRY )
Description#
This function returns the area of an input POLYGON or MULTIPOLYGON type GEOMETRY object.
If the subtype of the input GEOMETRY type is not POLYGON or MULTIPOLYGON, this function outputs an error.
Return Type#
DOUBLE
Example#
iSQL> SELECT F1, AREA(F2) FROM TB1 WHERE GEOMETRYTYPE(F2) = 'POLYGON';
F1 AREA(F2)
--------------------------------------
105 100
106 12
2 rows selected.
iSQL> SELECT F1, AREA(F2) FROM TB1;
F1 AREA(F2)
--------------------------------------
100
[ERR-A1019 : Not applicable object type]
1 row selected.
CENTROID#
Syntax#
CENTROID( GEOMETRY )
Description#
This function returns the mathematical center of gravity of an input POLYGON type GEOMETRY object.
Note that the resultant center of gravity may not actually be located within the surface of the input POLYGON or MULTIPOLYGON.
If the subtype of the input GEOMETRY type is not POLYGON or MULTIPOLYGON, this function outputs an error.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(CENTROID(F2))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'POLYGON'
OR GEOMETRYTYPE(F2) = 'MULTIPOLYGON';
F1 ASTEXT(CENTROID(F2))
-----------------------------------------------
105 POINT(5 5)
106 POINT(5 7)
107 POINT(2.75 2.75)
3 rows selected.
iSQL> SELECT F1, ASTEXT(CENTROID(F2)) FROM TB1;
F1 ASTEXT(CENTROID(F2))
-----------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
POINTONSURFACE#
Syntax#
POINTONSURFACE( GEOMETRY )
Description#
This function returns a POINT that is guaranteed to be in the interior or on the boundary of an input POLYGON type GEOMETRY object.
If the subtype of the input GEOMETRY type is not POLYGON or MULTIPOLYGON, this function outputs an error.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(POINTONSURFACE(F2))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'POLYGON'
OR GEOMETRYTYPE(F2) = 'MULTIPOLYGON';
F1 ASTEXT(POINTONSURFACE(F2))
-----------------------------------------------
105 POINT(5 5)
106 POINT(3.5 7)
107 POINT(1.5 1.5)
3 rows selected.
iSQL> SELECT F1, ASTEXT(POINTONSURFACE(F2)) FROM TB1;
F1 ASTEXT(POINTONSURFACE(F2))
-----------------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
EXTERIORRING#
Syntax#
EXTERIORRING( GEOMETRY )
Description#
This function returns the exterior ring of an input POLYGON type GEOMETRY object. If the input POLYGON has no interior ring, the return value is the same as the boundary of the POLYGON.
If the subtype of the input GEOMETRY type is not POLYGON, this function outputs an error.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(EXTERIORRING(F2))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'POLYGON';
F1 ASTEXT(EXTERIORRING(F2))
-----------------------------------------------------
105 LINESTRING(0 0, 10 0, 10 10, 0 10, 0 0)
106 LINESTRING(3 5, 7 5, 7 9, 3 9, 3 5)
2 rows selected.
iSQL> SELECT F1, ASTEXT(EXTERIORRING(F2)) FROM TB1;
F1 ASTEXT(EXTERIORRING(F2))
---------------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
NUMINTERIORRING#
Syntax#
NUMINTERIORRING( GEOMETRY )
Description#
This function returns the number of interior rings that the input POLYGON type GEOMETRY object consists of.
This function returns 0 (zero) if the POLYGON has no interior rings. If the subtype of the input GEOMETRY type is not POLYGON, this function outputs an error
Return Type#
INTEGER
Example#
iSQL> SELECT F1, NUMINTERIORRING(F2) FROM TB1 WHERE GEOMETRYTYPE(F2) = 'POLYGON';
F1 NUMINTERIORRING(F2)
-----------------------------------
105 0
106 1
2 rows selected.
iSQL> SELECT F1, NUMINTERIORRING(F2) FROM TB1;
F1 NUMINTERIORRING(F2)
-----------------------------------
100
[ERR-A1019 : Not applicable object type]
1 row selected.
INTERIORRINGN#
Syntax#
INTERIORRINGN( GEOMETRY, N )
Description#
This function returns the Nth interior ring of the input POLYGON type GEOMETRY object.
If N is 0 or negative, or if N is greater than the number of interior rings in the POLYGON, this function returns an error.
If the subtype of the input GEOMETRY type is not POLYGON, this function outputs an error.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(INTERIORRINGN(F2, 1))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'POLYGON'
AND NUMINTERIORRING(F2) > 0;
F1 ASTEXT(INTERIORRINGN(F2,1))
---------------------------------------------------
106 LINESTRING(4 6, 4 8, 6 8, 6 6, 4 6)
1 row selected.
iSQL> SELECT F1, ASTEXT(INTERIORRINGN(F2, 1)) FROM TB1;
F1 ASTEXT(INTERIORRINGN(F2,1))
-------------------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
NUMGEOMETRIES#
Syntax#
NUMGEOMETRIES( GEOMETRY )
Description#
This function returns the number of GEOMETRY objects in the input GEOMETRYCOLLECTION type GEOMETRY object.
If the input argument is not a multiple object or a GEOMETRYCOLLECTION type object, this function outputs an error.
Return Type#
INTEGER
Example#
iSQL> SELECT F1, NUMGEOMETRIES(F2) FROM TB1 WHERE GEOMETRYTYPE(F2) = 'GEOMETRYCOLLECTION';
F1 NUMGEOMETRIES(F2)
---------------------------------
108 2
1 row selected.
iSQL> SELECT F1, NUMGEOMETRIES(F2) FROM TB1;
F1 NUMGEOMETRIES(F2)
---------------------------------
100
[ERR-A1019 : Not applicable object type]
1 row selected.
GEOMETRYN#
Syntax#
GEOMETRYN( GEOMETRY, N )
Description#
This function returns the Nth GEOMETRY object in the input GEOMETRYCOLLECTION type GEOMETRY object.
If N is less than 1 or greater than the number of GEOMETRY objects in the input GEOMETRYCOLLECTION, or if the input argument is not a multiple object or a GEOMETRYCOLLECTION type object, this function returns an error.
Return Type#
GEOMETRY
Example#
SELECT F1
, ASTEXT(GEOMETRYN(F2, 1))
FROM TB1
WHERE GEOMETRYTYPE(F2) = 'GEOMETRYCOLLECTION';
F1 ASTEXT(GEOMETRYN(F2,1))
-----------------------------------------------------
108 POINT(1 1)
1 row selected.
iSQL> SELECT F1, ASTEXT(GEOMETRYN(F2, 1)) FROM TB1;
F1 ASTEXT(GEOMETRYN(F2,1))
---------------------------------------------------
100
[ERR-A1019 : Inapplicable object type]
1 row selected.
Spatial Analysis Functions#
DISTANCE#
Syntax#
DISTANCE( GEOMETRY1, GEOMETRY2 )
Description#
This function returns the shortest distance between two points in two respective GEOMETRY objects.
Return Type#
DOUBLE
Example#
SELECT TB1.F1
, TB2.F1
, DISTANCE(TB1.F2, TB2.F2)
FROM TB1
, TB2
WHERE TB1.F1 + 100 = TB2.F1;
F1 F1 DISTANCE(TB1.F2, TB2.F2)
-----------------------------------------------------
100 200
101 201 12.7279220613579
102 202 11.3137084989848
103 203 11.3137084989848
104 204 7.81024967590665
105 205 2
106 206 1
107 207 7.07106781186548
108 208 9.89949493661167
109 209 0
10 rows selected.
BUFFER#
Syntax#
BUFFER( GEOMETRY, NUMBER )
Description#
This function returns a GEOMETRY object that contains all the points that are spaced apart from the input GEOMETRY object by a distance smaller than or equal to the value specified in the NUMBER argument. In other words, it returns a buffer around the input GEOMETRY object.
The subtype of the GEOMETRY input argument cannot be a GEOMETRYCOLLECTION object. Additionally, the distance (indicated by the NUMBER argument) must be greater than 0 (zero).
Return Type#
GEOMETRY
Example#
iSQL> SELECT F1
, ASTEXT(BUFFER(F2, 10))
FROM TB1
WHERE GEOMETRYTYPE(TB1.F2) = 'GEOMETRYCOLLECTION';
[ERR-A1019 : Not applicable object type]
SELECT F1
, ASTEXT(BUFFER(F2, 10))
FROM TB1
WHERE DIMENSION(F2) = 0;
F1 ASTEXT(BUFFER(F2,10))
-------------------------------------------------------------------------------------------------
101 POLYGON((11 1, 9.660254 6, 6 9.660254, 1 11, -4 9.660254, -7.660254 6, -9 1, -7.
660254 -4, -4 -7.660254, 1 -9, 6 -7.660254, 9.660254 -4, 11 1))
102 POLYGON((2 12, -3 10.66025, -4 9.660254, -6.660254 7, -7.660254 6, -9 1, -7.6602
54 -4, -4 -7.660254, 1 -9, 6 -7.660254, 9.660254 -4, 10.66025 -3, 12 2, 10.66025
7, 7 10.66025, 2 12))
2 rows selected.
CONVEXHULL#
Syntax#
CONVEXHULL( GEOMETRY )
Description#
This function returns a GEOMETRY object that represents the smallest closed convex polygon that surrounds a GEOMETRY object.
The subtype of the GEOMETRY input argument cannot be a GEOMETRYCOLLECTION object.
Return Type#
GEOMETRY
Example#
iSQL> SELECT F1
, ASTEXT(CONVEXHULL(F2))
FROM TB1
WHERE GEOMETRYTYPE(TB1.F2) = 'GEOMETRYCOLLECTION';
[ERR-A1019 : Not applicable object type]
SELECT F1
, ASTEXT(CONVEXHULL(F2))
FROM TB1
WHERE GEOMETRYTYPE(TB1.F2) = 'POLYGON';
F1 ASTEXT(CONVEXHULL(F2))
------------------------------------------------------
105 POLYGON((0 10, 0 0, 10 0, 10 10, 0 10))
106 POLYGON((3 9, 3 5, 7 5, 7 9, 3 9))
2 rows selected.
INTERSECTION#
Syntax#
INTERSECTION( GEOMETRY1, GEOMETRY2 )
Description#
This function returns the intersection(s) of the input GEOMETRY1 and GEOMETRY2 GEOMETRY objects in the form of an output GEOMETRY object.
Neither of the GEOMETRY input arguments can be a GEOMETRYCOLLECTION object.
Return Type#
GEOMETRY
Example#
SELECT TB1.F1
, TB2.F1
, ASTEXT(INTERSECTION(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE GEOMETRYTYPE(TB1.F2) != 'GEOMETRYCOLLECTION';
F1 F1 ASTEXT(INTERSECTION(TB1.F2,TB2.F2))
------------------------------------------------------------
101 200
101 201 EMPTY
101 202 EMPTY
101 203 EMPTY
101 204 EMPTY
101 205 EMPTY
101 206 EMPTY
101 207 EMPTY
[ERR-A1019 : Inapplicable object type]
8 rows selected.
SELECT TB1.F1
, TB2.F1
, ASTEXT(INTERSECTION(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE GEOMETRYTYPE(TB1.F2) = 'POLYGON'
AND GEOMETRYTYPE(TB2.F2) = 'POLYGON';
F1 F1 ASTEXT(INTERSECTION(TB1.F2,TB2.F2))
----------------------------------------------------------------------------------------------------------
105 205 POLYGON((10 10, 2 10, 2 2, 10 2, 10 10))
105 206 POLYGON((9 5, 8 5, 8 3, 9 3, 9 5), (8.8 3.2, 8.2 3.2, 8.2 4.8, 8.8 4.8, 8.8 3.2))
106 205 POLYGON((7 9, 3 9, 3 5, 7 5, 7 9), (6 6, 4 6, 4 8, 6 8, 6 6))
106 206 EMPTY
4 rows selected.
UNION#
Syntax#
UNION( GEOMETRY1, GEOMETRY2 )
Description#
This function returns a new GEOMETRY object that represents the union (i.e. the combined total) of two GEOMETRY objects.
Neither of the GEOMETRY input arguments can be a GEOMETRYCOLLECTION object. Additionally, the two GEOMETRY objects must have the same number of dimensions.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT(
UNION(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE DIMENSION(TB1.F2) = 1
AND DIMENSION(TB2.F2) = 2;
[ERR-A1019 : Not applicable object type]
SELECT ASTEXT(
UNION(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE GEOMETRYTYPE(TB1.F2) = 'POLYGON'
AND GEOMETRYTYPE(TB2.F2) = 'POLYGON';
ASTEXT(UNION(TB1.F2,TB2.F2))
-----------------------------------------------------------------------------------------
POLYGON((12 12, 2 12, 2 10, 0 10, 0 0, 10 0, 10 2, 12 2, 12 12))
POLYGON((10 10, 0 10, 0 0, 10 0, 10 10))
POLYGON((12 12, 2 12, 2 2, 12 2, 12 12))
MULTIPOLYGON(((8 3, 9 3, 9 5, 8 5, 8 3), (8.2 3.2, 8.2 4.8, 8.8 4.8, 8.8 3.2, 8.2 3.2
)), ((3 5, 7 5, 7 9, 3 9, 3 5), (4 6, 4 8, 6 8, 6 6, 4 6)))
4 rows selected.
DIFFERENCE#
Synax#
DIFFERENCE( GEOMETRY1, GEOMETRY2 )
Description#
This function returns the difference between two GEOMETRY objects.
The difference between two GEOMETRY objects is the portion of GEOMETRY1 that does not overlap with GEOMETRY2.
Neither of the GEOMETRY input arguments can be a GEOMETRYCOLLECTION object. Additionally, the two GEOMETRY objects must have the same number of dimensions.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT(DIFFERENCE(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE DIMENSION(TB1.F2) = 1
AND DIMENSION(TB2.F2) = 2;
[ERR-A1019 : Not applicable object type]
SELECT ASTEXT(DIFFERENCE(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE GEOMETRYTYPE(TB1.F2) = 'POLYGON'
AND GEOMETRYTYPE(TB2.F2) = 'POLYGON';
ASTEXT(DIFFERENCE(TB1.F2,TB2.F2))
-----------------------------------------------------------------------------------------
POLYGON((2 10, 0 10, 0 0, 10 0, 10 2, 2 2, 2 10))
MULTIPOLYGON(((8.8 4.8, 8.2 4.8, 8.2 3.2, 8.8 3.2, 8.8 4.8)), ((10 10, 0 10, 0 0, 10
0, 10 10), (9 3, 8 3, 8 5, 9 5, 9 3)))
EMPTY
POLYGON((7 9, 3 9, 3 5, 7 5, 7 9), (6 6, 4 6, 4 8, 6 8, 6 6))
4 rows selected.
SYMDIFFERENCE#
Syntax#
SYMDIFFERENCE( GEOMETRY1, GEOMETRY2 )
Description#
This function returns a GEOMETRY object that represents the two input GEOMETRY objects, excluding the intersection between the two input objects. That is, it returns a GEOMETRY object that represents the part of GEOMETRY1 that is not included in GEOMETRY2, together with the part of GEOMETRY2 that is not included in GEOMETRY1.
Neither of the GEOMETRY input arguments can be a GEOMETRYCOLLECTION object. Additionally, the two GEOMETRY objects must have the same number of dimensions.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT(SYMDIFFERENCE(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE DIMENSION(TB1.F2) = 1
AND DIMENSION(TB2.F2) = 2;
[ERR-A1019 : Not applicable object type]
SELECT ASTEXT(SYMDIFFERENCE(TB1.F2, TB2.F2))
FROM TB1
, TB2
WHERE GEOMETRYTYPE(TB1.F2) = 'POLYGON'
AND GEOMETRYTYPE(TB2.F2) = 'POLYGON';
ASTEXT(SYMDIFFERENCE(TB1.F2,TB2.F2))
-----------------------------------------------------------------------------------------
MULTIPOLYGON(((12 12, 2 12, 2 10, 10 10, 10 2, 12 2, 12 12)), ((2 10, 0 10, 0 0, 10 0
, 10 2, 2 2, 2 10)))
MULTIPOLYGON(((8.8 4.8, 8.2 4.8, 8.2 3.2, 8.8 3.2, 8.8 4.8)), ((10 10, 0 10, 0 0, 10
0, 10 10), (9 3, 8 3, 8 5, 9 5, 9 3)))
MULTIPOLYGON(((6 8, 4 8, 4 6, 6 6, 6 8)), ((12 12, 2 12, 2 2, 12 2, 12 12), (7 5, 3 5
, 3 9, 7 9, 7 5)))
MULTIPOLYGON(((7 9, 3 9, 3 5, 7 5, 7 9), (6 6, 4 6, 4 8, 6 8, 6 6)), ((9 5, 8 5, 8 3,
9 3, 9 5), (8.8 3.2, 8.2 3.2, 8.2 4.8, 8.8 4.8, 8.8 3.2)))
4 rows selected.
SRID#
Syntax#
SRID( GEOMETRY )
Description#
This function returns the SRID of the spatial object.
Return Type#
INTEGER
Example#
iSQL> SELECT F1, SRID(F2) FROM TB1;
F1 SRID(F2)
---------------------------
1 0
2 100
3 101
4 102
5 103
5 rows selected.
SETSRID#
Syntax#
SETSRID( GEOMETRY, INTEGER )
Description#
This function changes the SRID of a spatial object.
Return Type#
GEOMETRY
Example#
iSQL> SELECT F1, SRID(F2) FROM TB1;
F1 SRID(F2)
---------------------------
1 0
2 100
3 101
4 102
5 103
5 rows selected.
iSQL> INSERT INTO TB1 SELECT F1, SETSRID(F2, 9999) FROM TB1;
5 rows inserted.
iSQL> SELECT F1, SRID(F2) FROM TB1;
F1 SRID(F2)
---------------------------
1 0
2 100
3 101
4 102
5 103
1 9999
2 9999
3 9999
4 9999
5 9999
10 rows selected.
Spatial Object Creation Functions#
GEOMFROMTEXT#
Syntax#
GEOMFROMTEXT( WKT)
Description#
This function accepts a description of a spatial object in WKT (Well-known Text)2 format as input and creates and outputs a GEOMETRY object.
The input can be any type of spatial object that can be described using WKT. If the syntax of the input WKT is not valid, this function outputs an error.
The SIRD of the created object is 0.
Return Value#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (101, GEOMFROMTEXT('GEOMETRYCOLLECTION(POINT(10 10), POINT(30 30), LINESTRING(15 15, 20 20))'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3;
ID ASTEXT(OBJ)
-----------------------------------------------------------------------------------------
101 GEOMETRYCOLLECTION( POINT(10 10) , POINT(30 30) , LINESTRING(15 15, 20 20) )
1 row selected.
iSQL> INSERT INTO TB3 VALUES (102, GEOMFROMTEXT('POLYGON((10 10, 10 20, 20 20, 20 15, 10))'));
[ERR-A101A : Parsing error of well-known-text]
POINTFROMTEXT#
Syntax#
POINTFROMTEXT( WKT)
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates and outputs a GEOMETRY object whose subtype is POINT.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY subtype other than a POINT, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL.
The SIRD of the created object is 0.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (102, POINTFROMTEXT('POINT(10 10)'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'POINT';
ID ASTEXT(OBJ)
------------------------------------------------------------------------
102 POINT(10 10)
1 row selected.
iSQL> INSERT INTO TB3 VALUES (103, POINTFROMTEXT('GEOMETRYCOLLECTION( POINT(10 10), POINT(30 30), LINESTRING(15 15, 20 20))'));
[ERR-A1019 : Not applicable object type]
LINEFROMTEXT#
Syntax#
LINEFROMTEXT( WKT )
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates and outputs a GEOMETRY object whose subtype is LINESTRING.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY subtype other than a LINESTRING, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL.
The SIRD of the created object is 0.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (103, LINEFROMTEXT('LINESTRING(10 10, 20 20, 30 40)'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'LINESTRING';
ID ASTEXT(OBJ)
-----------------------------------------------
103 LINESTRING(10 10, 20 20, 30 40)
1 row selected.
iSQL> INSERT INTO TB3 VALUES (104, LINEFROMTEXT('MULTIPOLYGON(((10 10, 10 20, 20 20, 20 15, 10 10)), ((60 60, 70 70, 80 60, 60 60)))'));
[ERR-A1019 : Not applicable object type]
POLYFROMTEXT#
Syntax#
POLYFROMTEXT( WKT[, srid] )
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates and outputs a GEOMETRY object whose subtype is POINT.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY subtype other than a POINT, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL.
The SRID of a created object is 0.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (104, POLYFROMTEXT('POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'POLYGON';
ID ASTEXT(OBJ)
-----------------------------------------------------------
104 POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))
1 row selected.
iSQL> INSERT INTO TB3 VALUES (105, POLYFROMTEXT('MULTILINESTRING((10 10, 20 20), (15 15, 30 15))'));
[ERR-A1019 : Not applicable object type]
iSQL> INSERT INTO TB3 VALUES (120, POLYFROMTEXT('POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))', 100));
1 row inserted.
iSQL> SELECT ID, ASEWKT(OBJ) FROM TB3;
ID ASEWKT(OBJ)
-----------------------------------------------------------------------------
104 SRID=0;POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))
120 SRID=100;POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))
2 rows selected.
ST_POLYGONFROMTEXT#
Syntax#
ST_POLYGONFROMTEXT( TEXT[, srid] )
Description#
This function accepts a spatial object in WKT (Well-known Text) format or EWKT(Extended Well-Known Text) as input and creates a POLYGON object.
This function returns NULL if the value of the WKT or SRID is NULL.
Unlike POLYFROMTEXT, if the WKT or EWKT describes a spatial object that is not a POLYGON object, this function returns NULL.
If the syntax of the input WKT or EWKT is not valid, an error is occurred.
It can specify the SRID of the created object. In case it is not specified, if the input was WKT the SRID of the object will be 0 and if the input was EWKT it will be the same as the SRID of EWKT.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (121, ST_POLYGONFROMTEXT('POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))'));
1 row inserted.
iSQL> INSERT INTO TB3 VALUES (122, ST_POLYGONFROMTEXT('POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))', 100));
1 row inserted.
iSQL> INSERT INTO TB3 VALUES (123, ST_POLYGONFROMTEXT('MULTILINESTRING((10 10, 20 20), (15 15, 30 15))'));
1 row inserted.
iSQL> INSERT INTO TB3 VALUES (124, ST_POLYGONFROMTEXT('SRID=100;POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))'));
1 row inserted.
iSQL> SELECT ID, ASEWKT(OBJ) FROM TB3;
ID ASEWKT(OBJ)
--------------------------------------------------------------------
121 SRID=0;POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))
122 SRID=100;POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))
123
124 SRID=100;POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))
4 rows selected.
MPOINTFROMTEXT#
Syntax#
MPOINTFROMTEXT( WKT )
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates and outputs a GEOMETRY object whose subtype is MULTIPOINT.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY subtype other than a MULTIPOINT object, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL.
The SRID of a created object is 0.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (105, MPOINTFROMTEXT('MULTIPOINT(10 10, 20 20)'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'MULTIPOINT';
ID ASTEXT(OBJ)
----------------------------------------------------
105 MULTIPOINT(10 10, 20 20)
1 row selected.
iSQL> INSERT INTO TB3 VALUES (106, MPOINTFROMTEXT('LINESTRING(10 10, 20 20, 30 40)'));
[ERR-A1019 : Not applicable object type]
MLINEFROMTEXT#
Syntax#
MLINEFROMTEXT( WKT )
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates and outputs a GEOMETRY object whose subtype is MULTILINESTRING.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY subtype other than a MULTILINESTRING object, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL.
The SRID of a created object is 0.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (106, MLINEFROMTEXT('MULTILINESTRING((10 10, 20 20), (15 15, 30 15))'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'MULTILINESTRING';
ID ASTEXT(OBJ)
------------------------------------------------------------
106 MULTILINESTRING((10 10, 20 20), (15 15, 30 15))
1 row selected.
iSQL> INSERT INTO TB3 VALUES (107, MLINEFROMTEXT('POINT(10 10)'));
[ERR-A1019 : Not applicable object type]
MPOLYFROMTEXT#
Syntax#
MPOLYFROMTEXT( WKT )
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates and outputs a GEOMETRY object whose subtype is MULTIPOLYGON.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY subtype other than a MULTIPOLYGON object, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (107, MPOLYFROMTEXT('MULTIPOLYGON(((10 10, 10 20, 20 20, 20 15, 10 10)), ((60 60, 70 70, 80 60, 60 60)))'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'MULTIPOLYGON';
ID ASTEXT(OBJ)
------------------------------------------------------------------------------------------------
107 MULTIPOLYGON(((10 10, 10 20, 20 20, 20 15, 10 10)), ((60 60, 70 70, 80 60, 60 60)))
1 row selected.
iSQL> INSERT INTO TB3 VALUES (108, MPOLYFROMTEXT('MULTIPOINT(10 10, 20 20)'));
[ERR-A1019 : Not applicable object type]
GEOMCOLLFROMTEXT#
Syntax#
GEOMCOLLFROMTEXT( WKT )
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates and outputs a GEOMETRY object whose subtype is GEOMETRYCOLLECTION.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY subtype other than a GEOMETRYCOLLECTION, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (108, GEOMCOLLFROMTEXT('GEOMETRYCOLLECTION(POINT(10 10), POINT(30 30), LINESTRING(15 15, 20 20))'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'GEOMETRYCOLLECTION';
ID ASTEXT(OBJ)
------------------------------------------------------------------------------------------
101 GEOMETRYCOLLECTION( POINT(10 10) , POINT(30 30) , LINESTRING(15 15, 20 20) )
108 GEOMETRYCOLLECTION( POINT(10 10) , POINT(30 30) , LINESTRING(15 15, 20 20) )
2 rows selected.
iSQL> INSERT INTO TB3 VALUES (109, GEOMCOLLFROMTEXT('POLYGON((10 10, 10 20, 20 20, 20 15, 10 10))'));
[ERR-A1019 : Not applicable object type]
ST_GEOMETRY#
Syntax#
ST_GEOMETRY( WKT )
Description#
This function accepts a spatial object in WKT (Well-known Text) format as input and creates a GEOMETRY object.
It allows any spatial objects that can be expressed in WKT format.
If the syntax of the input WKT is not valid, or if the WKT describes a GEOMETRY object that is not included in GEOMETRY object collection, this function outputs an error.
This function returns NULL if the value of the WKT argument is NULL. The SRID of the created object is 0.
Return Type#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (110, ST_GEOMETRY('MULTIPOLYGON(((10 10, 10 20, 20 20, 20 15, 10 10)), ((60 60, 70 70, 80 60, 60 60)))'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE ID = 110;
ID ASTEXT(OBJ)
-----------------------------------------------------------------------------------------------
110 MULTIPOLYGON(((10 10, 10 20, 20 20, 20 15, 10 10)), ((60 60, 70 70, 80 60, 60 60)))
1 row selected.
GEOMFROMWKB#
Syntax#
GEOMFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary)3 format as input and creates and outputs a GEOMETRY object.
Return Type#
GEOMETRY
POINTFROMWKB#
Syntax#
POINTFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary) format as input and creates and outputs a GEOMETRY object whose subtype is POINT.
If the input WKB information describes a GEOMETRY subtype other than a POINT, this function returns an error.
Return Type#
GEOMETRY
LINEFROMWKB#
Syntax#
LINEFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary) format as input and creates and outputs a GEOMETRY object whose subtype is LINESTRING.
If the input WKB information describes a GEOMETRY subtype other than a LINESTRING, this function outputs an error.
Return Type#
GEOMETRY
ST_LINESTRINGFROMWKB#
Syntax#
ST_LINESTRINGFROMWKB( WKB[, SRID] )
Description#
This function accepts a spatial object in WKB(Well-Known Binary) format or EWKB(Extended Well-Known Binary) format and its SRID as input and creates a LINESTRING object.
This function returns NULL if the value of the WKB or the value of the SRID is NULL.
If the WKB or EWKB describes spatial data type other than LINESTRING, NULL is returned.
If the syntax of the input WKB or EWKB is not valid, it outputs an error.
If the SRID is not specified, the SRID of the created object is the dafault value 0.
Return Type#
GEOMETRY
POLYFROMWKB#
Syntax#
POLYFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary) format as input and creates and outputs a GEOMETRY object whose subtype is POLYGON.
If the input WKB information describes a GEOMETRY subtype other than a POLYGON, this function outputs an error.
Return Type#
GEOMETRY
MPOINTFROMWKB#
Syntax#
MPOINTFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary) format as input and creates and outputs a GEOMETRY object whose subtype is MULTIPOINT.
If the input WKB information describes a GEOMETRY subtype other than a MULTIPOINT object, this function returns an error.
Return Type#
GEOMETRY
MLINEFROMWKB#
Syntax#
MLINEFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary) format as input and creates and outputs a GEOMETRY object whose subtype is MULTILINESTRING.
If the input WKB information describes a GEOMETRY subtype other than a MULTILINESTRING object, this function returns an error.
Return Type#
GEOMETRY
MPOLYFROMWKB#
Syntax#
MPOLYFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary) format as input and creates and outputs a GEOMETRY object whose subtype is MULTIPOLYGON.
If the input WKB information describes a GEOMETRY subtype other than a MULTIPOLYGON object, this function returns an error.
Return Type#
GEOMETRY
GEOMCOLLFROMWKB#
Syntax#
GEOMCOLLFROMWKB( WKB )
Description#
This function accepts a spatial object in WKB (Well-Known Binary) format as input and creates and outputs a GEOMETRY object whose subtype is GEOMETRYCOLLECTION.
If the input WKB information describes a GEOMETRY subtype other than a GEOMETRYCOLLECTION, this function returns an error.
Return Type#
GEOMETRY
RECTFROMTEXT#
Syntax#
RECTFROMTEXT( WKT )
Description#
This function creates polygon object by receiving RECTANGLE spacial object in WKT (Well-Known Text) format. If the input WKB information describes a spatial object other than RECTANGLE or the syntax is incorrect, this function returns an error.
This function returns NULL if the value of the WKT argument is NULL.
RECTANGLE represents RECTANGLE with two points (bottom left and top right), RECTANGLE is sotred as a polygon object. RECTANGLE (x1 y1, x2 y2) is same as POLYGON ((x1 y1, x2 y1, x2 y2, x1 y2, x1 y1)).
Return Value#
GEOMETRY
Example#
iSQL> INSERT INTO TB3 VALUES (104, RECTFROMTEXT('RECTANGLE(10 10, 20 20)'));
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'POLYGON';
ID ASTEXT(OBJ)
-------------------------------------------------------------------
104 POLYGON((10 10, 20 10, 20 20, 10 20, 10 10))
1 row selected.
iSQL> INSERT INTO TB3 VALUES (105, RECTFROMTEXT('MULTILINESTRING((10 10, 20 20), (15 15, 30 15))'));
[ERR-A1019 : Inapplicable object type
0001 : INSERT INTO TB3 VALUES (105, RECTFROMTEXT('MULTILINESTRING((10 10, 20 20), (15 15, 30 15))'))
^ ^
]
RECTFROMWKB#
Syntax#
RECTFROMWKB( WKB )
Description#
This function creates polygon object by receiving RECTANGLE spacial object in WKT (Well-Known Binary) format. If the input WKB information describes a spatial object other than RECTANGLE or the syntax is incorrect, this function returns an error.
RECTANGLE represents RECTANGLE with two points (bottom left and top right), RECTANGLE is sotred as a polygon object. RECTANGLE (x1 y1, x2 y2) is same as POLYGON ((x1 y1, x2 y1, x2 y2, x1 y2, x1 y1)).
Return Value#
GEOMETRY
Example#
Creates a polygon object in WKB corresponding to RECTANGLE (1 1, 3 3).
iSQL> INSERT INTO TB3 VALUES ( 106, RECTFROMWKB(BINARY'0108000000000000000000F03F000000000000F03F00000000000008400000000000000840') );
1 row inserted.
iSQL> SELECT ID, ASTEXT(OBJ) FROM TB3 WHERE GEOMETRYTYPE(OBJ) = 'POLYGON';
ID ASTEXT(OBJ)
--------------------------------------------------------------------------
106 POLYGON((1 1, 3 1, 3 3, 1 3, 1 1))
1 row selected.
GEOMFROMEWKT#
Syntax#
GEOMFROMEWKT( EWKT )
Description#
GEOMETRY object is created by receiving spatial object in EWKT (Extended Well-Known Text) format.
All spatial objects that can be represented in EWKT are allowed to be input.
If the syntax of EWKT is wrong, an error is output.
Return Type#
GEOMETRY
Description#
iSQL> INSERT INTO TB3 VALUES(101, GEOMFROMEWKT('SRID=101;GEOMETRYCOLLECTION(POINT(10 10), POINT(30 30), LINESTRING(15 15, 20 20))'));
1 row inserted.
iSQL> SELECT ID, ASEWKT(OBJ) FROM TB3;
ID ASEWKT(OBJ)
--------------------------------------------------------------------------------------------------
101 SRID=101;GEOMETRYCOLLECTION( POINT(10 10) , POINT(30 30) , LINESTRING(15 15, 20 20) )
1 row selected.
iSQL> INSERT INTO TB3 VALUES(101, GEOMFROMEWKT('POINT(10 10), SRID=4326'));
[ERR-A101A : Error parsing well-known-text
0001 : INSERT INTO TB3 VALUES(101, GEOMFROMEWKT('POINT(10 10), SRID=102'))
^ ^
]
GEOMFROMEWKB#
Syntax#
GEOMFROMEWKB( EWKB )
Description#
GEOMETRY object is created by receiving spatial object in EWKB format.
Return Type#
GEOMETRY
ST_MAKEPOINT#
Syntax#
ST_MAKEPOINT( x, y )
Description#
This receives the x and y values and returns the sptail object of POINT.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT( ST_MAKEPOINT( 1, 1 ) ) FROM DUAL;
ASTEXT(ST_MAKEPOINT(1,1))
--------------------------------------------
POINT(1 1)
1 row selected.
ST_POINT#
Syntax#
ST_POINT( x, y )
Description#
Same as ST_MAKEPOINT.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT( ST_POINT( 1, 1 ) ) FROM DUAL;
ASTEXT(ST_POINT(1,1))
--------------------------------------------
POINT(1 1)
1 row selected.
ST_MAKELINE#
Syntax#
ST_MAKELINE( GEOMETRY1, GEOMETRY2 )
Description#
This creats a LineString object by receiving Point, MultiPoint, and LineString objects.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT( ST_MAKELINE( GEOMETRY'POINT(1 1)', GEOMETRY'POINT(2 2)' ) ) AS GEOM
FROM DUAL;
GEOM
------------------------------------------------------
LINESTRING(1 1, 2 2)
1 row selected.
iSQL> SELECT ASTEXT( ST_MAKELINE( GEOMETRY'LINESTRING(1 1, 2 2)', GEOMETRY'LINESTRING(3 3, 4 4)' ) ) AS GEOM
FROM DUAL;
GEOM
--------------------------------------------------
LINESTRING(1 1, 2 2, 3 3, 4 4)
1 row selected.
ST_MAKEPOLYGON#
Syntax#
ST_MAKEPOLYGON( GEOMETRY )
Description#
This function accepts a LineString object as input and creates and outputs a Polygon object. Here, LineString should be in Ring format.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT( ST_MAKEPOLYGON( GEOMETRY'LINESTRING( 0 0, 1 1, 1 0, 0 0 ) ' ) ) AS GEOM
FROM DUAL;
GEOM
------------------------------------------------------------
POLYGON((0 0, 1 1, 1 0, 0 0))
1 row selected.
ST_POLYGON#
Syntax#
ST_POLYGON( GEOMETRY, SRID )
Description#
This function is similar to ST_MAKEPOLYGON. This function accepts a LINESTRING object and SRID as input and creates a POLYGON object.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ST_ASEWKT( ST_POLYGON( GEOMETRY'LINESTRING( 2 2, 3 2, 3 3, 2 3, 2 2 ) ', 4326 ) ) AS GEOM
FROM DUAL;
GEOM
---------------------------------------------------------
SRID=4326;POLYGON((2 2, 3 2, 3 3, 2 3, 2 2))
1 row selected.
ST_COLLECT#
Syntax#
ST_COLLECT( GEOMETRY1, GEOMETRY2 );
Description#
This function accepts Geometry objects as input and creates a GeometryCollection object. If the input type is the same, the result value is MULTIPOINT, MULTILINESTRING or MULTIPOLYGON. If not, the result is GeometryCollection.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT( ST_COLLECT( GEOMETRY'POINT( 1 1 )', GEOMETRY'POINT( 2 2 )' ) ) AS GEOM FROM DUAL;
GEOM
-----------------------------------------------------------------------------------
MULTIPOINT(1 1, 2 2)
1 row selected.
iSQL> SELECT ASTEXT( ST_COLLECT( GEOMETRY'LINESTRING( 1 1, 2 2 )', GEOMETRY'LINESTRING( 3 3, 4 4 )' ) ) AS GEOM FROM DUAL;
GEOM
------------------------------------------------------------------------------------
MULTILINESTRING((1 1, 2 2), (3 3, 4 4))
1 row selected.
iSQL> SELECT ASTEXT( ST_COLLECT( GEOMETRY'POLYGON( ( 0 0, 1 1, 1 0, 0 0 ) )', GEOMETRY'POLYGON( ( 10 10, 2 2, 2 0, 10 10 ) )' ) ) AS GEOM FROM DUAL;
GEOM
------------------------------------------------------------------------------------
MULTIPOLYGON(((0 0, 1 1, 1 0, 0 0)), ((10 10, 2 2, 2 0, 10 10)))
1 row selected.
iSQL> SELECT ASTEXT( ST_COLLECT( GEOMETRY'POINT( 1 1 )', GEOMETRY'LINESTRING( 1 1, 2 2 )' ) ) AS GEOM FROM DUAL;
GEOM
------------------------------------------------------------------------------------
GEOMETRYCOLLECTION( POINT(1 1) , LINESTRING(1 1, 2 2) )
1 row selected.
ST_MAKEENVELOPE#
Syntax#
ST_MAKEENVELOPE( X1, Y1, X2, Y2[, SRID=0] )
Description#
This function returns POLYGON( X1 Y1, X2 Y1, X2 Y2, X1 Y2, X1 Y1 ) which is the result of the ENVELOPE function that accepts LINESTRING( X1 Y1, X2 Y2 ) that is constituted of 4 Double type parameters as input. If the SRID was specified in advance, the created object will have the same SRID. If the SRID was not specified, the SRID of the created object will be 0.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASEWKT( ST_MAKEENVELOPE( 10.9351, 49.3866, 11.201, 49.5138 ) ) AS POL FROM DUAL;
POL
----------------------------------------------------------------------------------------------------------------------------
SRID=0;POLYGON((10.9351 49.3866, 11.201 49.3866, 11.201 49.5138, 10.9351 49.5138, 10.9351 49.3866))
1 row selected.
iSQL> SELECT ASEWKT( ST_MAKEENVELOPE( 10.9351, 49.3866, 11.201, 49.5138, 104 ) ) AS POL FROM DUAL;
POL
----------------------------------------------------------------------------------------------------------------------------
SRID=104;POLYGON((10.9351 49.3866, 11.201 49.3866, 11.201 49.5138, 10.9351 49.5138, 10.9351 49.3866))
1 row selected.
ST_REVERSE#
Syntax#
ST_REVERSE(GEOMETRY)
Description#
This function changes the points of the spatial object in reverse order. If the spatial object is EMPTY it returns NULL. If it is a point, it returns the same spatial object as the input. If it is multiple spatial objects it changes the point of each object in reverse order.
Return Type#
GEOMETRY
Example#
iSQL> SELECT ASTEXT( ST_REVERSE(GEOMETRY'LINESTRING( 2 2, 3 2, 3 3, 2 3, 2 4 )') ) AS LS FROM DUAL;
LS
------------------------------------------------------------------------------------
LINESTRING(2 4, 2 3, 3 3, 3 2, 2 2)
1 row selected.
ST_TRANSFORM#
Syntax#
GEOMETRY ST_Transform( GEOMETRY, INTEGER to_srid );
GEOMETRY ST_Transform( GEOMETRY, VARCHAR to_proj4text );
GEOMETRY ST_Transform( GEOMETRY, VARCHAR from_proj4text, VARCHAR to_proj4text );
GEOMETRY ST_Transform( GEOMETRY, VARCHAR from_proj4text, INTEGER to_srid );
Description#
This function creates new GEOMETRY object by converting the input GEOMETRY object to input coordination. Input/output coordination can be SRID format or PROF4TEXT format.
Return Type#
GEOMETRY
Constraints#
-
This function can only be used in Linux operating system running on computers from Intel.
-
If one of the input elements is NULL, NULL is returned.
-
If input GEOMETRY object is EMPTY, EMPTY GEOMETRY object is returned.
-
If the input and output SRID is identical, returned GEOMETRY object and input GEOMETRY object will be identical as well.
-
If the input was SRID coordinate system, there should be SRID's Spatial Reference System meta data which can be found in SPATIAL_REF_SYS table.
-
PROJ4TEXT is only supported in PROJ library version 4 format.
-
If the output coordinate system is PROJ4TEXT, the SRID of the returned GEOMETRY object is 0.
-
If the input coordinate system is PROJ4TEXT and the SRID of the GEOMETRY object is 0, the SRID of the returned GEOMETRY object is 0.
Example#
iSQL> SELECT ST_ASEWKT(ST_TRANSFORM(ST_POINTFROMTEXT('POINT(958003.59712966 1948254.75875841)', 5178), 4326 )) AS GEOMETRY;
GEOMETRY
-------------------------------------------------------------------------------------------
SRID=4326;POINT(127.0246 37.5326)
1 row selected.
iSQL> SELECT ST_ASEWKT(ST_TRANSFORM(ST_POINTFROMTEXT('POINT(958003.59712966 1948254.75875841)', 5178), '+PROJ=LONGLAT +ELLPS=WGS84 +DATUM=WGS84 +NO_DEFS' )) AS GEOMETRY;
GEOMETRY
-------------------------------------------------------------------------------------------
SRID=0;POINT(127.0246 37.5326)
1 row selected.
iSQL> SELECT ST_ASEWKT(ST_TRANSFORM(ST_POINTFROMTEXT('POINT(958003.59712966 1948254.75875841)'), '+PROJ=TMERC +LAT_0=38 +LON_0=127.5 +K=0.9996 +X_0=1000000 +Y_0=2000000 +ELLPS=BESSEL +UNITS=M +NO_DEFS', '+PROJ=LONGLAT +ELLPS=WGS84 +DATUM=WGS84 +NO_DEFS' )) AS GEOMETRY;
GEOMETRY
--------------------------------------------------------------------------------------------
SRID=0;POINT(127.0246 37.5326)
1 row selected.
iSQL> SELECT ST_ASEWKT(ST_TRANSFORM(ST_POINTFROMTEXT('POINT(958003.59712966 1948254.75875841)'), '+PROJ=TMERC +LAT_0=38 +LON_0=127.5 +K=0.9996 +X_0=1000000 +Y_0=2000000 +ELLPS=BESSEL +UNITS=M +NO_DEFS', 4326 )) AS GEOMETRY;
GEOMETRY
--------------------------------------------------------------------------------------------
SRID=0;POINT(127.0246 37.5326)
1 row selected.
Dimensionally Extended Nine Intersection Model(DE－9IM)#
Spatial Relational Operators in the Dimensionally Extended Nine Intersection Model(DE－9IM)#
The "Simple Features for SQL" specification, proposed by the OGC, sets forth the Dimensionally Extended Nine-Intersection Model (DE-9IM). This model is used to test whether a spatial topological relationship exists between two spatial objects.
The DE-9IM describes the following kinds of spatial relationships:
- Equal
- Disjoint
- Intersects
- Touches
- Crosses
- Within
- Contains
- Overlaps
These are described in greater detail later in this section.
The Dimensionally Extended Nine-Intersection Model is used to determine whether a relationship exists between the interior, boundary, or exterior of one spatial object and the interior, boundary, or exterior of another spatial object. Thus, there are nine possible relationships between two spatial objects, and these nine possibilities can be arranged in a 3x3 matrix.
For a given spatial object a, I(a), B(a) and E(a) respectively represent the interior, boundary and exterior of the spatial object. dim(x) returns the number of dimensions of the relationship between the spatial objects. The return value can be one of -1, 0, 1 or 2.
If dim(x) returns -1, the two spatial objects do not intersect each other.
For example, the intersection between the boundaries of two Polygons can consist of Points and LineStrings. In this case, dim(B(a)∩B(b)) returns the greater number of dimensions between Points, which have zero dimensions, and LineStrings, which have one dimension; that is, it returns a value of 1.
The Dimensionally Extended Nine-Intersection Matrix (DE-9IM), which includes all nine possible combinations described above, is shown in the following table.
| Interior | Boundary | Exterior | |
|---|---|---|---|
| Interior | dim( I(a) ∩ I(b) ) | dim( I(a) ∩ B(b) ) | dim( I(a) ∩ E(b) ) |
| Boundary | dim( B(a) ∩ I(b) ) | dim( B(a) ∩ B(b) ) | dim( B(a) ∩ E(b) ) |
| Exterior | dim( E(a) ∩ I(b) ) | dim( E(a) ∩ B(b) ) | dim( E(a) ∩ E(b) ) |
[Table 2‑2] DE－9IM
The result returned by a spatial relational operator can be tested by comparing it with the above pattern matrix, which shows all of the possible values according to the DE-9IM. The pattern matrix contains the allowable values for each intersection. These values are as follows:
T: An intersection must exist
dim ∈ (0, 1, 2)
F:An intersection must not exist.
dim = -1
* : It does not matter whether an intersection exists.
dim ∈ (-1, 0, 1, 2)
0: An intersection must exist, and it must be 0-dimensional.
dim = 0
1 An intersection must exist, and it must be 1-dimensional.
dim = 1
2 An intersection must exist, and it must be 2-dimensional.
dim = 2
For example, the pattern matrix for the DISJOINT operator, which tests whether two spatial objects have no intersection between them, is as follows:
| I(geometry2) | B(geometry2) | E(geometry2) | |
|---|---|---|---|
| I(geometry1) | F | F | * |
| B(geometry1) | F | F | * |
| E(geometry1) | * | * | * |
[Table 2-3] The Pattern Matrix for the DISJOINT Operator
In order for two spatial objects to have the DISJOINT relationship in between, there must be no intersections between the interiors or boundaries of the two objects. The other conditions do not matter, i.e. relationships involving the exterior of either object are not important. The above pattern matrix can be expressed in string form as shown below: "FF*FF****"
When expressed in string form in this way, the relationship can be tested using the RELATE operator.
The following figure shows the DE-9IM pattern matrix for two overlapping Polygons (a) and (b).
[Figure 2-9] The DE-9IM pattern matrix for two overlapping Polygons
| I(b) | B(b) | E(b) | |
|---|---|---|---|
| I(a) | 2 | 1 | 2 |
| B(a) | 1 | 0 | 1 |
| E(a) | 2 | 1 | 2 |
As noted above, the DE-9IM sets forth 8 kinds of spatial relationships that can exist between two spatial objects. These are defined below:
| Operation | Description |
|---|---|
| DISJOINT( a, b ) | a ∩ b = Ø |
| TOUCHES( a, b ) | (I(a) ∩ I(b) = Ø) ∧ (a ∩ b) ≠ Ø |
| WITHIN( a, b ) | (a ∩ b = a) ∧ (I(a) ∩ E(b) ≠ Ø) |
| CONTAINS( a, b ) | WITHIN( b, a ) |
| OVERLAPS( a, b ) | (dim(I(a)) = dim(I(b)) = dim(I(a) ∩ I(b))) ∧ (a ∩ b ≠ a) ∧ (a ∩ b ≠ b) |
| CROSSES( a, b ) | (dim(I(a) ∩ I(b) \< max(dim(I(a)), dim(I(b)))) ∧ (a ∩ b ≠ a) ∧ (a ∩ b ≠ b) |
| INTERSECTS( a, b ) | NOT DISJOINT( a, b ) |
| EQUALS( a, b ) | (dim(I(a)) = dim(I(b))) ∧ (dim(B(a)) = dim(B(b))) ∧ (dim(E(a)) = dim(E(b))) |
[Table 2-4] Definition of Spatial Relational Operations
Topological Predicates and Corresponding Pattern Matrices#
Altibase provides operators for testing for each of the relationships set forth in the DE-9IM. These are described below.
DISJOINT#
This operator tests whether two spatial objects have no intersection in between. The definition of the operator and the DE-9IM pattern matrix string passed to the RELATE operator are as follows:
DISJOINT(a, b)
⇔ (I(a) ∩ I(b) = Ø) ∧ (I(a) ∩ B(b) = Ø) ∧ (B(a) ∩ I(b) = Ø) ∧ (B(a) ∩ B(b) = Ø)
⇔ RELATE(a, b, 'FF＊FF＊＊＊＊')
[Figure 2‑10] Examples of a spatial object for a DISJOINT relationship
TOUCHES#
This operator tests whether two spatial objects touch each other at one or more points. The definition of the operator and the DE-9IM pattern matrix string passed to the RELATE operator are as follows:
TOUCHES(a, b)
⇔ (I(a) ∩ I(b) = Ø) ∧ (B(a) ∩ I(b) ≠ Ø) ∨ (I(a) ∩ B(b) ≠ Ø) ∨ (B(a) ∩ B(b) ≠ Ø))
⇔ RELATE (a, b, 'FT＊＊＊＊＊＊＊') ∨ RELATE (a, b, 'F＊＊T＊＊＊＊＊') ∨ RELATE (a, b, 'F＊＊＊T＊＊＊＊')

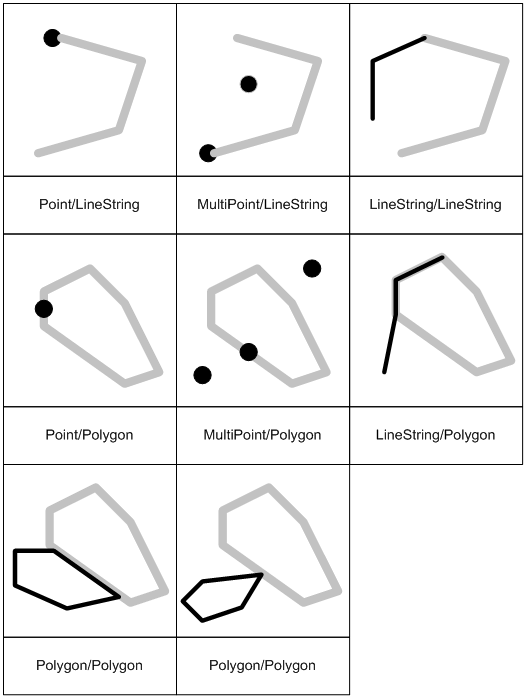

[Figure 2‑11] Examples of a spatial object for a TOUCHES relationship
WITHIN#
This operator tests whether the first spatial object completely includes the second spatial object. The definition of the operator and the DE-9IM pattern matrix string passed to the RELATE operator are as follows:
WITHIN(a, b)
⇔ (I(a) ∩ I(b) ≠ Ø) ∧ (I(a) ∩ E(b) =Ø) ∧ (B(a) ∩ E(b) =Ø))
⇔ RELATE (a, b, 'TF＊F＊＊＊＊＊')

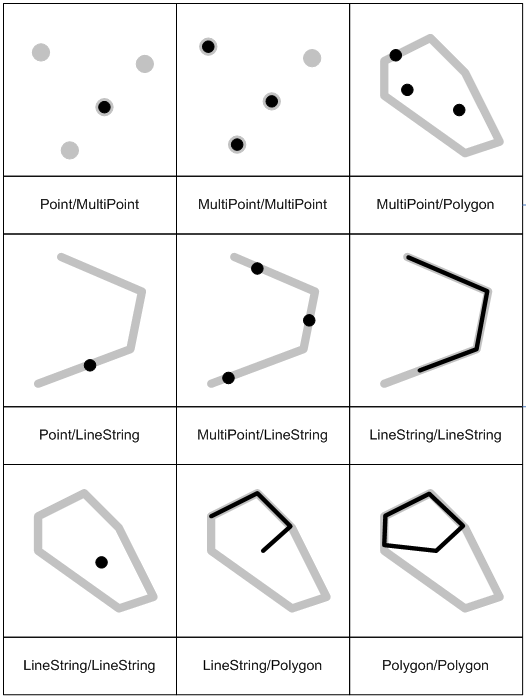

[Figure 2‑12] Examples of a spatial object for a TOUCHES relationship
In the above figure, the grey spatial object represents spatial object a and the black spatial object represents spatial object b.
CONTAINS#
This operator tests whether the second spatial object completely includes the first spatial object. This operator is the reverse of the WITHIN operator. The definition of the operator is as follows:
CONTAINS(a, b) ⇔ WITHIN(b, a)

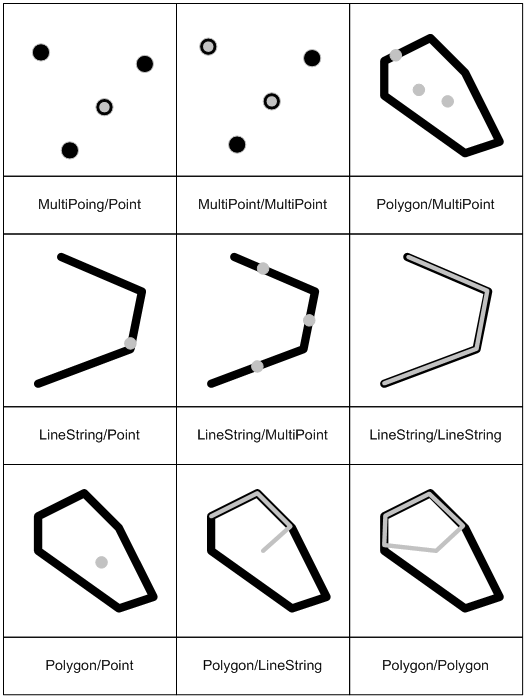

[Figure 2‑13] Examples of a spatial object for a CONTAINS relationship
In the above figure, the black spatial object represents spatial object a and the grey spatial object represents spatial object b. In all cases, spatial object a contains spatial object b.
OVERLAPS#
This operator tests whether two spatial objects having the same number of dimensions include only a part of each other. The OVERLAPS relationship is defined differently depending on the spatial objects in question: Polygon and Polygon, LineString and LineString, Point and Point. The OVERLAPS relationship between LineString and LineString is as follows:
OVERLAPS(a, b)
⇔ (dim(I(a) ∩ I(b) = 1) ∧ (I(a) ∩ E(b)≠ Ø) ∧ (E(a) ∩ I(b) ≠ Ø))
⇔ RELATE (a, b, '1＊T＊＊＊T＊＊')
The OVERLAPS relationship between other kinds of spatial objects is defined as follows:
OVERLAPS(a, b)
⇔ (I(a) ∩ I(b) ≠ Ø) ∧ (I(a) ∩ E(b)≠ Ø) ∧ (E(a) ∩ I(b) =Ø))
⇔ RELATE (a, b, 'T＊T＊＊＊T＊＊')

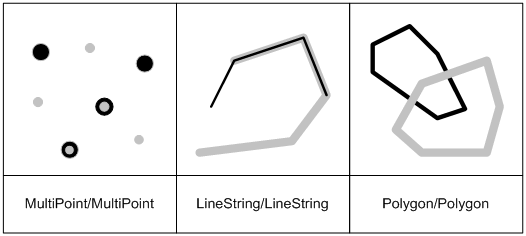

[Figure 2‑14] Examples of a spatial object for a OVERLAPS relationship
CROSSES#
This operator tests whether two spatial objects intersect each other. Additionally, it can also be used to test for an intersection between two LineStrings. The CROSSES relationship is defined differently depending on the spatial objects in question: Point and LineString, Point and Polygon, LineString and LineString, LineString and Polygon.
The CROSSES relationship between LineString and LineString is defined as follows:
CROSSES(a, b)
⇔ (dim(I(a) ∩ I(b)) = 0
⇔ RELATE (a, b, '0＊＊＊＊＊＊＊＊')
The CROSSES relationship between other combinations of object subtypes is defined as follows:
CROSSES(a, b)
⇔ (I(a) ∩ I(b) ≠ Ø) ∧ (I(a) ∩ E(b) ≠ Ø)
⇔ RELATE (a, b, 'T＊T＊＊＊＊＊＊')

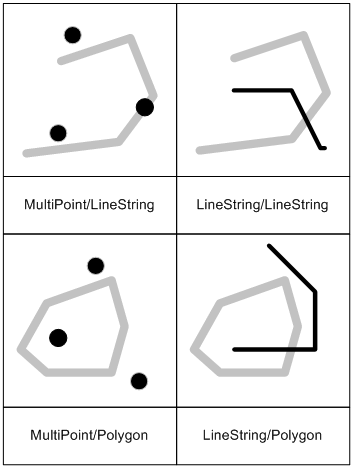

[Figure 2‑15] Examples of a spatial object for a CROSSES relationship
INTERSECTS#
The definition of this operator is as follows:
INTERSECTS(a, b) ⇔！ DISJOINT(a, b)
EQUALS#
This operator tests whether two spatial objects are topologically identical. The following figure shows examples of the EQUALS relationship between spatial objects:

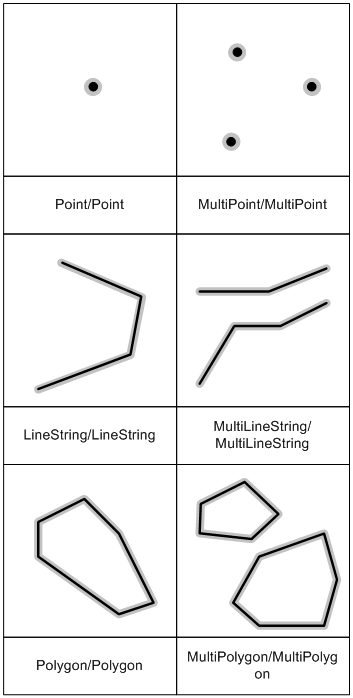

[Figure 2‑16] Examples of a spatial object for a EQUALS relationship
Spatial Relational Operators in Altibase SQL#
This section describes the spatial relational operators that are available in Altibase.
EQUALS#
Syntax#
EQUALS( GEOMETRY1, GEOMETRY2 )
Description#
EQUALS returns TRUE if the two GEOMETRY objects are topologically identical, and FALSE if they differ.
Return Type#
BOOLEAN
Example#
iSQL> SELECT a.F1, b.F1 FROM TB1 a, TB1 b WHERE EQUALS(a.F2, b.F2);
F1 F1
---------------------------
101 101
102 102
103 103
104 104
105 105
106 106
107 107
108 108
8 rows selected.
NOTEQUALS#
Syntax#
NOTEQUALS( GEOMETRY1, GEOMETRY2 )
Description#
NOTEQUALS is opposite to EQUALS.
Return Type#
BOOLEAN
Example#
iSQL> SELECT a.F1, b.F1 FROM TB1 a, TB1 b WHERE NOTEQUALS(a.F2, b.F2) AND GEOMETRYTYPE(a.F2) = 'POLYGON';
F1 F1
---------------------------
105 100
105 101
105 102
105 103
105 104
105 106
105 107
105 108
105 109
106 100
106 101
106 102
106 103
106 104
106 105
106 107
106 108
106 109
18 rows selected.
DISJOINT#
Syntax#
DISJOINT( GEOMETRY1, GEOMETRY2 )
Description#
DISJOINT returns TRUE if there is no intersection between the two GEOMETRY objects, and FALSE otherwise. DISJOINT returns the opposite of the value returned by INTERSECTS.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE DISJOINT(TB1.F2, TB2.F2) AND GEOMETRYTYPE(TB1.F2) = 'POLYGON';
F1 F1
---------------------------
105 207
105 208
105 209
106 201
106 202
106 203
106 204
106 206
106 207
106 208
106 209
11 rows selected.
INTERSECTS#
Syntax#
INTERSECTS( GEOMETRY1, GEOMETRY2 )
Description#
INTERSECTS returns TRUE if the two GEOMETRY objects intersect each other, and FALSE if they do not intersect each other.
INTERSECTS returns the opposite of the value returned by DISJOINT.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE INTERSECTS(TB1.F2, TB2.F2) ;
F1 F1
---------------------------
102 205
103 205
104 205
105 201
105 202
105 203
105 204
105 205
105 206
106 205
107 205
108 205
12 rows selected.
TOUCHES#
Syntax#
TOUCHES( GEOMETRY1, GEOMETRY2 )
Description#
TOUCHES returns TRUE when the two GEOMETRY objects contact each other at one or more points, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE TOUCHES(TB1.F2, TB2.F2);
F1 F1
---------------------------
102 205
103 205
105 201
105 202
105 203
105 204
108 205
7 rows selected.
NOTTOUCHES#
Syntax#
NOTTOUCHES( GEOMETRY1, GEOMETRY2 )
Description#
NOTTOUCHES is opposite to TOUCHES.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE NOTTOUCHES(TB1.F2, TB2.F2) AND GEOMETRYTYPE(TB1.F2) = 'POLYGON';
F1 F1
---------------------------
105 200
105 201
105 202
105 203
105 204
105 205
105 206
105 207
105 208
105 209
106 200
106 201
106 202
106 203
106 204
106 205
106 206
106 207
106 208
106 209
20 rows selected.
CROSSES#
Syntax#
CROSSES( GEOMETRY1, GEOMETRY2 )
Description#
CROSSES returns TRUE when two GEOMETRY objects having different numbers of dimensions intersect each other, and FALSE otherwise.
Additionally, CROSSES is also used to test for an intersection between two LINESTRINGs.
Return Type#
BOOLEAN
Example#
iSQL> SELECT a.F1, b.F1 FROM TB1 a, TB1 b WHERE CROSSES(a.F2, b.F2);
F1 F1
---------------------------
102 108
1 row selected.
NOTCROSSES#
Syntax#
NOTCROSSES( GEOMETRY1, GEOMETRY2 )
Description#
NOTCROSSES is opposite to CROSSES.
Return Type#
BOOLEAN
Example#
iSQL> SELECT a.F1, b.F1 FROM TB1 a, TB1 b WHERE NOTCROSSES(a.F2, b.F2) AND GEOMETRYTYPE(a.F2) = 'POLYGON';
F1 F1
---------------------------
105 100
105 101
105 102
105 103
105 104
105 105
105 106
105 107
105 108
105 109
106 100
106 101
106 102
106 103
106 104
106 105
106 106
106 107
106 108
106 109
20 rows selected.
WITHIN#
Syntax#
WITHIN( GEOMETRY1, GEOMETRY2 )
Description#
WITHIN returns TRUE if the first GEOMETRY object is completely included in the second GEOMETRY object, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE WITHIN(TB1.F2, TB2.F2);
F1 F1
---------------------------
106 205
1 rows selected.
NOTWITHIN#
Syntax#
NOTWITHIN( GEOMETRY1, GEOMETRY2 )
Description#
NOTWITHIN is opposite to WITHIN.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE NOTWITHIN(TB1.F2, TB2.F2) AND GEOMETRYTYPE(TB1.F2) = 'POLYGON';
F1 F1
---------------------------
105 200
105 201
105 202
105 203
105 204
105 205
105 207
105 208
105 209
106 200
106 201
106 202
106 203
106 204
106 205
106 206
106 207
106 208
106 209
19 rows selected.
CONTAINS#
Syntax#
CONTAINS( GEOMETRY1, GEOMETRY2 )
Description#
CONTAINS returns TRUE if the first GEOMETRY object completely includes the second GEOMETRY object, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE CONTAINS(TB1.F2, TB2.F2);
F1 F1
---------------------------
105 206
1 row selected.
NOTCONTAINS#
Syntax#
NOTCONTAINS( GEOMETRY1, GEOMETRY2 )
Description#
NOTCONTAINS is opposite to CONTAINS.
Return Type#
BOOLEAN
Example#
iSQL> SELECT a.F1, b.F1 FROM TB1 a, TB1 b WHERE NOTCONTAINS(a.F2, b.F2) AND GEOMETRYTYPE(a.F2) = 'POLYGON';
F1 F1
---------------------------
105 100
105 101
105 102
105 104
105 106
105 107
105 108
105 109
106 100
106 109
10 rows selected.
OVERLAPS#
Syntax#
OVERLAPS( GEOMETRY1, GEOMETRY2 )
Description#
OVERLAPS returns TRUE if two GEOMETRY objects include only part, but not all, of each other, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE OVERLAPS(TB1.F2, TB2.F2);
F1 F1
---------------------------
105 205
107 205
3 rows selected.
NOTOVERLAPS#
Syntax#
NOTOVERLAPS( GEOMETRY1, GEOMETRY2 )
Description#
NOTOVERLAPS is opposite to OVERLAPS.
Return Tyoe#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE NOTOVERLAPS(TB1.F2, TB2.F2) AND GEOMETRYTYPE(TB1.F2) = 'POLYGON';
F1 F1
---------------------------
105 200
105 201
105 202
105 203
105 204
105 205
105 206
105 207
105 208
105 209
106 200
106 201
106 202
106 203
106 204
106 208
106 209
17 rows selected.
RELATE#
Syntax#
RELATE( GEOMETRY1, GEOMETRY2 , patterns )
Description#
RELATE returns TRUE if the relationship between two GEOMETRY objects matches the given pattern matrix string, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE RELATE(TB1.F2, TB2.F2, 'T**F*****');
F1 F1
---------------------------
105 206
1 rows selected.
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE RELATE(TB1.F2, TB2.F2, 'T*T***T**');
F1 F1
---------------------------
104 205
105 205
107 205
3 rows selected.
NOTRELATE#
Syntax#
NOTRELATE( GEOMETRY1, GEOMETRY2 , patterns )
Description#
NOTRELATE is opposite to RELATE.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE NOTRELATE(TB1.F2, TB2.F2, 'T*T***T**') AND GEOMETRYTYPE(TB1.F2) = 'POLYGON';
F1 F1
---------------------------
105 201
105 202
105 203
105 204
105 205
105 206
105 207
105 208
105 209
106 201
106 209
11 rows selected.
ISMBRINTERSECTS#
Syntax#
ISMBRINTERSECTS( GEOMETRY1, GEOMETRY2 );
Description#
ISMBRINTERSECTS returns TRUE if the MBRs (Minimum Bounding Rectangles) of the two GEOMETRY objects intersect each other, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE ISMBRINTERSECTS(TB1.F2, TB2.F2) ;
F1 F1
---------------------------
102 205
103 205
104 205
105 201
105 202
105 203
105 204
105 205
105 206
105 207
105 208
106 205
107 205
108 205
14 rows selected.
ISMBRWITHIN#
Syntax#
ISMBRWITHIN( GEOMETRY1, GEOMETRY2 );
Description#
ISMBRWITHIN returns TRUE if the minimal bounding rectangle of the first GEOMETRY object is completely included within that of the second GEOMETRY object, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE ISMBRWITHIN(TB1.F2, TB2.F2);
F1 F1
---------------------------
106 205
1 rows selected.
ISMBRCONTAINS#
Syntax#
ISMBRCONTAINS( GEOMETRY1, GEOMETRY2 );
Description#
ISMBRCONTAINS returns TRUE if the minimal bounding rectangle of the first GEOMETRY object completely includes that of the second GEOMETRY object, and FALSE otherwise.
Return Type#
BOOLEAN
Example#
iSQL> SELECT TB1.F1, TB2.F1 FROM TB1, TB2 WHERE ISMBRCONTAINS(TB1.F2, TB2.F2);
F1 F1
---------------------------
105 201
105 206
2 rows selected.
Reserved Words#
The following words have been set aside as reserved words in Spatial SQL, and thus cannot be used as the names of tables, columns, users, or other database objects.
AREA ASBINARY
ASTEXT BOUNDARY
BUFFER CENTROID
CONTAINS CONVEXHULL
COORDX COORDY
CROSSES DIFFERENCE
DIMENSION DISJOINTS
DISTANCE ENDPOINT
ENVELOPE EQUALS
EXTERIORRING GEOMCOLLFROMTEXT
GEOMCOLLFROMWKB GEOMETRY
GEOMETRYCOLLECTION GEOMETRYLENGTH
GEOMETRYN GEOMETRYTYPE
GEOMFROMTEXT GEOMFROMWKB
INTERIORRINGN INTERSECTION
INTERSECTS ISCLOSED
ISEMPTY ISRING
ISSIMPLE LINEFROMTEXT
LINEFROMWKB LINESTRING
MLINEFROMTEXT MLINEFROMWKB
MPOINTFROMTEXT MPOINTFROMWKB
MPOLYFROMTEXT MPOLYFROMWKB
MULTILINESTRING MULTIPOINT
MULTIPOLYGON NUMGEOMETRIES
NUMINTERIORRING NUMPOINTS
OVERLAPS POINT
POINTFROMTEXT POINTFROMWKB
POINTN POINTONSURFACE
POLYFROMTEXT POLYFROMWKB
POLYGON RELATE
RECTFROMTEXT RECTFROMWKB
ST_GEOMETRY STARTPOINT
SYMDIFFERENCE TOUCHES
UNION WITHIN
X Y
MINX MINY
MAXX MAXY
ISVALID
-
Because the ASBINARY function returns a GEOMETRY object in binary form, its content cannot be viewed in a console window. Accordingly, the ASTEXT function has been provided for use in converting a GEOMETRY object to WKT format so that it can be output in a readily understandable form. ↩
-
For more detailed information about WKT (Well-Known Text), please refer to GEOMETRY expression format. ↩
-
For more detailed information on WKB (Well-Known Binary), please refer to GEOMETRY expression format. ↩
-
The EMPTY subtype is created only as a result of performing operations on spatial objects, and cannot be explicitly created by the user. ↩
-
This symbol indicates an empty set that contains no results. ↩
-
This symbol means that this subtype may or may not satisfy this condition. ↩
-
A non-simple POLYGON violates the definition of a POLYGON, and thus cannot be inserted. ↩
