8. Managing Transactions

Concurrency control and data consistency are two of the most fundamental concepts in database management. This chapter describes how to manage transactions in an Altibase database.

Transactions

A transaction is a logical unit of work that is comprised of one or more SQL statements. A transaction begins with the first execution of a SQL statement by a user, and ends when it is committed or rolled back, either explicitly with a COMMIT or ROLLBACK statement or implicitly when a DDL statement is issued.

Definition of Transaction

A transaction ensures the consistency of data changes to a user as long as the SQL statements within a transaction are logically grouped. A transaction should consist of all of the necessary parts for one logical unit of work—no more and no less. Data in all referenced tables that are in a consistent state before the transaction begins should also be in a consistent state after it ends. Transactions should consist of only the SQL statements that make one consistent change to the data.

Transferring deposit at the bank is a representative example of a transaction. In order to transfer $100 from account A to account B, the following tasks must be completed:

1. Decrease the balance of account A by $100.
2. Increase the balance of account B by $100.
3. Make a record of the fact that money was transferred from account A to account B

When a transaction is normally executed on a database that was in a consistent state before the transaction, the database will still be consistent after the transaction. If even one of the three tasks constituting the above transaction is not performed correctly, the integrity of the database will be compromised, and either the holder of account A, the holder of account B or the bank will suffer damages.

To maintain database integrity, a properly executed transaction must exhibit the four ACID properties: Atomicity, Consistency, Isolation, and Durability.

Atomicity

Either all of the statements that constitute a transaction are completely executed, or none of them are. That is, the transaction cannot be partially successful.

Consistency

The execution of a transaction must not break the integrity of the database.

Isolation

when multiple transactions are executed at the same time, no transaction should be affected by the results of other transactions.

Durability

Once a transaction has been committed, the resultant changes are not lost under any circumstances, such as system failure.

Autonomous_Transaction

If Autonomous_Transaction Pragma statement is used, PSM object is able to operate from the main transaction independently. Since the autonomous transaction does not share sources, lock, commit, or recovery operations are performed independently.

For more detailed information, please refer to the Pragma in Stored Procedure Manual.

Transaction Termination

A transaction will be terminated if any of the following occurs.

• The transaction is terminated when the user executes the ROLLBACK statement without a SAVEPOINT clause, or executes the COMMIT statement.
• When the user executes a DDL statement, the transaction is committed.
• When the user disconnects from Altibase, the transaction is committed.
• If the user session terminates abnormally, the current transaction is rolled back.

Statements

The term "statement" refers to a SQL statement within a transaction. SQL statements fall into the three following categories:

• DCL (Data Control Language)

  This type of statement is used to change the status of the database, its properties, or its physical configuration.

• DDL (Data Definition Language)

  This type of statement is used to create, change, or delete database logical structural elements, such as tables, sequences, indexes, and the like. Examples are the CREATE TABLE, CREATE INDEX, ALTER, and DROP statements.

• DML (Data Manipulation Language)

  Data Manipulation Language commands are used to insert, delete, modify, or view the actual data saved in a database. Example DML statements are the UPDATE, INSERT, and DELETE statements

A statement is usually just a single SQL statement, but one or more underlying statements are executed when a stored procedure or function is executed.

If an error occurs while a statement is being executed, all of the data affected by the statement are restored to their original state. To make this possible, a so-called "Implicit Save Point" is set before each statement is executed, and the database is restored to this point if an error occurs.

Commit

Committing a transaction means permanently saving the results of all SQL statements executed within the transaction up to that point in time and ending the transaction. When a transaction is committed, the database is moved from a previous state, in which it had integrity, to a new state that also has integrity.

When a transaction is committed in Altibase, the following tasks are performed:

• A transaction commit log is written to a log file.
• Resources that are no longer needed by the transaction and thus can be released are handed over to the Garbage Collector.
• The status of the transaction is changed to "committed".
• Resources allocated during execution of the transaction, such as locks and temporary memory, are released.

Rollback

If there is a fatal error in the middle of a transaction and cannot proceed any further, all SQL statements executed by the transaction must be undone, and the database must be returned to the state that existed before execution of the transaction. This is referred to as "rolling back" a transaction.

Rollback of a transaction is implemented by performing a compensation operation on each log recorded during the transaction.

When a transaction is rolled back in Altibase, the following tasks are performed:

• The log records are read in the opposite order in which they were written, and compensatory operations are executed.
• A transaction rollback log is recorded.
• Resources that were allocated for insert operations, etc. are returned to the garbage collector.
• The status of the transaction is changed to "rolled back."
• Resources allocated during execution of the transaction, such as locks and temporary memory, are released.

Explicit Savepoint

To manage a long transaction by dividing it into several portions, explicit save points can be declared at the start point of each portion

Because each explicit save point can have a name, multiple save points can be declared within a single transaction. If an error occurs after an explicit save point is declared, the transaction can be rolled back to the save point to restore the database.

When a transaction is rolled back to an explicit save point, all of the resources such as table and row locks acquired since that savepoint are released, and all savepoints declared since that point are canceled.

Locking

The purpose of a "lock" is to set access rights to a particular object in the database.

Altibase uses locks to control concurrent access to data. When data are updated, those data are locked until the update is committed. Until that happens, no one else can access the locked data. This helps ensure the integrity of the data in the system.

Locking Modes

Locks are acquired at row level or table level depending on their purpose. Common uses for locks include the following:

• to ensure that only one user can modify a record at a time
• to ensure that a table cannot be dropped if it is being queried
• to ensure that one user cannot delete a record while another is updating it

Table Level Lock Modes

[Table 8-1] Lock Modes

Lock Mode	Description	Property
S	Shared Lock	The holder of the lock can read all of the records in a table, and does not lock individual records. Other transactions that only read the table can be executed at the same time.
X	Exclusive Lock	The holder of the lock can read and modify all of the records in a table, and does not lock individual records. No other transactions can read or modify the table. Used with most DDL statements.
IS	Intent Shared Lock	This mode is the same as S mode except that the lock holder locks individual records before reading them. Used with SELECT statements.
IX	Intent Exclusive Lock	The lock holder can read and modify records after obtaining a lock on the records. Multiple transactions that write to different records in the same table can exist at the same time. Used with change DML (INSERT, UPDATE, DELETE) statements or SELECT FOR UPDATE.
SIX	Shared with Intent Exclusive Lock	The lock holder can read and modify records after obtaining a lock on the records. Only one transaction can update records in the table. Used with Direct-Path INSERT.

Intention Mode Lock - IS, IX, SIX

There are many types of objects that can be locked. These objects can have various sizes within the database. Examples of objects that can be locked include the entire database, schemas, tables, records and columns. Arranged in descending order of size, these are:

database > schema > table > record > column

Lock granularity refers to the size of the object to be locked. If locking was supported only for large objects, concurrency control would suffer. Suppose that multiple transactions attempt to perform operations on individual records in a table. If locking was supported only for objects larger than records, (e.g. for the entire table,) when a transaction is executed, even if it performed an operation on only a single record, all other transactions wishing to perform operations on other records in the table would have to wait until the operation that started first was successfully completed.

Therefore, it is most efficient to make the record the smallest lockable unit. To acquire a lock on the smallest unit, the lock on larger objects must also be acquired. This is referred to as the "lock granularity protocol".

When acquiring a lock on larger objects, it is recommended to choose a suitable lock mode from among the various lock modes that are provided, so that multiple transactions can perform operations on the same table as long as they are not accessing the same records. So-called "intention mode locking" is used for this purpose.

Lock Compatibility

The term "lock compatibility" refers to compatibility between lock modes, that is, to whether a request to place a particular kind of lock on an object will be accepted when the object in question has already been locked by another transaction.

The compatibility between the various lock modes is set forth in the following table:

[Table 8-2] Lock Mode Compatibility

	Granted Mode
Requested Mode	NONE	IS	IX	SIX	S	X
IS	O	O	O	O	O	-
IX	O	O	O	-	-	-
SIX	O	O	-	-	-	-
S	O	O	-	-	O	-
X	-	-	-	-	-	-

Record Level Lock Modes

The INSERT, UPDATE, and DELETE DML statements obtain X locks on individual records, whereas read operations obtain S locks on individual records.

[Table 8-3] Record-Level Lock Modes

Lock Mode	Description	Property
S	Shred Lock	Records can only be read.
X	Exclusive Lock	Records can be modified.

Normally, S locks conflict with X locks, and the two types of locks are not considered inter-compatible. However, thanks to the Altibase MVCC (Multi-Version Concurrency Control) implementation, these kinds of locks do not conflict with each other. Thus, read operations can be performed on records that are being updated, and update operations can be performed on records that are being read.

Multi-Version Concurrency Control (MVCC)

In Altibase, MVCC (Multi-Version Concurrency Control) is used to ensure the consistency of records. MVCC is a concurrency control method in which, when a DML statement is executed on a record, the record is maintained in its original state and the DML statement is executed on a copy of the record to create a new version of the record. In this way, any transaction that is performing an operation on a record will not affect other transactions that read the same record.

The MVCC concurrency control method cannot be implemented in the same way for memory tablespaces and disk tablespaces due to the differences in their characteristics. Altibase uses the so-called "Out-Place MVCC" for memory tablespaces and "In-Place MVCC" for disk tablespaces. Because these two techniques superficially appear to work in the same manner, there is no need for users to distinguish between the two.

This section briefly describes the internal processes that are conducted to support MVCC when each kind of DML statement is executed. First, the cases in which MVCC is not used are described first. Out-place MVCC for memory tablespaces is then described, followed by in-place MVCC for disk tablespaces. Finally, some cautionary notes to keep in mind when using MVCC are described.

Updating without Using MVCC

For the sake of comparison with MVCC, this section describes how an update statement is internally handled in a non-MVCC environment.

The following figure shows how the records in a table are changed in response to an update operation when MVCC is not being used.

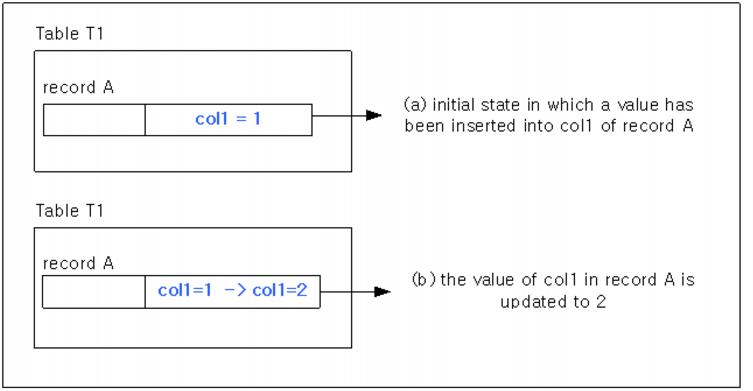

[Figure 8-1] Non-MVCC Transaction

In the above [Figure 8-1], (a) illustrates the state in which record A has been initially inserted into table T1. If col1 of record A is updated to the value of 2, as shown in (b) above, record A is modified in its original location without changing the amount of space allocated to T1. Similarly, DELETE operations are also performed in the original location of the record.

When MVCC is not being used, an UPDATE or DELETE operation does not change the amount of space allocated to a table. The space allocated to a table can be increased only by the execution of an INSERT statement.

Out-Place MVCC and Memory Tablespaces

In out-place MVCC, which is used with memory tablespaces in Altibase, a new version of a record is created and associated with previous versions of the record every time an UPDATE operation occurs.

UPDATE Operation

The following [Figure 8-2] shows the effect of executing an UPDATE statement when using out-place MVCC

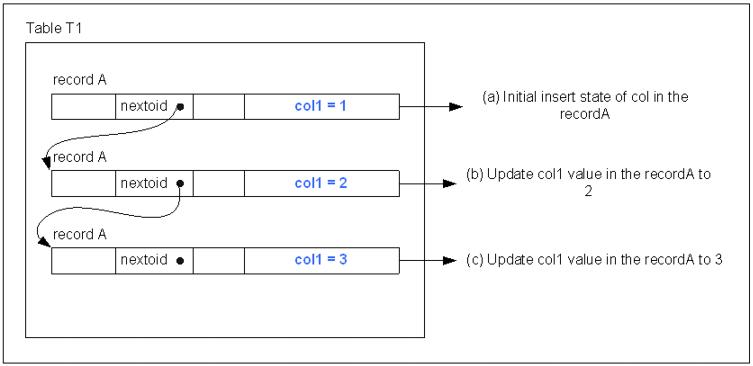

[Figure 8-2] Transaction using Out-Place MVCC

In the initial state, in which record A has been inserted into table T1, as shown at (a), if the value in col1 of record A in table T1 is updated to 2, an identical record is created and the value in this record is changed to 2, as shown at (b). Therefore, table T1 occupies one more slot than it did before the transaction took place

When the new version of record A is created, a pointer in the header of the original version of record A is used to indicate the newly added record. In this way, different versions of the same record can, therefore, be managed simultaneously

If another UPDATE operation is performed on record A, which is still in the state indicated by (b) in the above figure, yet another record will be created, and the UPDATE operation will be executed on the new record. Ultimately, the number of versions of the same record will equal the number of UPDATE operations performed on the record.

So, does the tablespace increase in size without limit as more UPDATE operations are performed?

When each transaction that performs an UPDATE operation on a particular record is committed, only the most recent of the multiple versions of the record are valid, and the previous versions do not need to be saved in the database. Unnecessary versions are deleted by the garbage collector, and the emptied spaces previously occupied by these versions are reused by subsequent INSERT/UPDATE statements. Therefore, even though a new version of a record is created every time an UPDATE operation occurs, the database does not occupy infinitely increasing amounts of space

DELETE Operation

Just like an UPDATE operation, whenever a DELETE operation is executed on a record, a new version of the record is created. Unlike an UPDATE operation, however, the new version of the record to be deleted does not actually contain any data. Therefore, it is not necessary to create a new version of every record when a DELETE operation is performed. It is sufficient to create a single version representing all deleted records.

The following figure shows how much space is used depending on whether or not new versions of each record are created when a DELETE operation is performed:

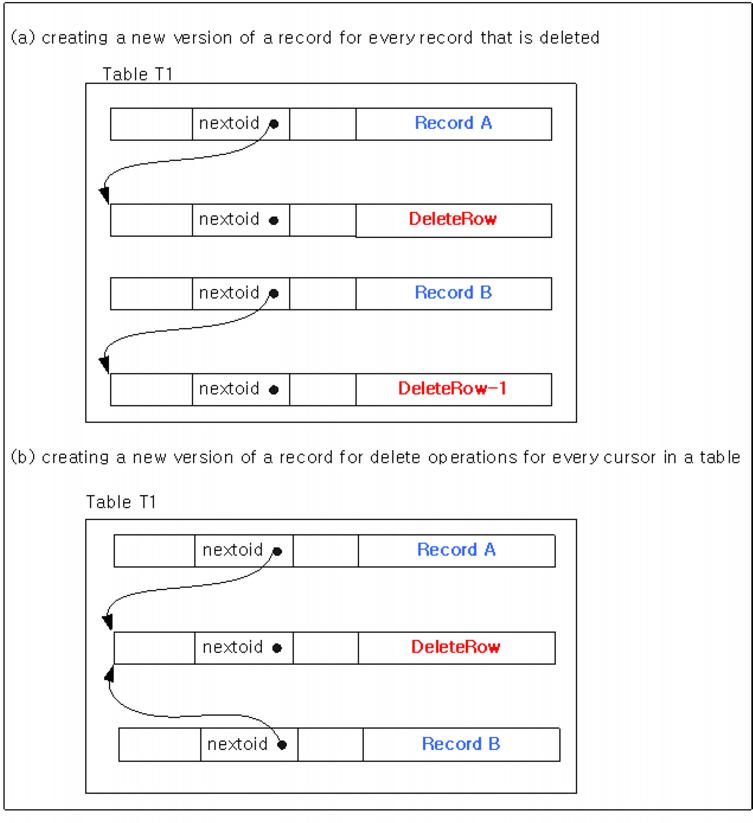

[Figure 8-3] DELETE Transaction using MVCC

The case indicated by (a) in the above figure represents the case in which a new version is created for every record that is deleted. If a transaction deletes records A and B using a single DELETE statement, new versions will be created for each record, and thus table T1 will have two additional records.

In the case indicated by (b), only one additional record is created, even though the DELETE statement deletes multiple records. As shown in the above figure, the case indicated by (b) generates fewer unnecessary versions of records, thereby increasing the efficiency of space utilization. Altibase uses the case indicated by (b) when DELETE statements are executed on tables in memory tablespace.

In-Place MVCC and Disk Tablespaces

According to in-place MVCC, which Altibase uses for disk tablespaces, when an UPDATE operation occurs, the contents of columns that belong to the original records and are being changed are written as so-called "undo log records" to an undo page, which exists in undo tablespace, and the new data are written to the location of the original record.

Insert Operation

When a record is first inserted, the system allocates space for the record in a data tablespace and creates the record. The system also allocates an area for an undo log record in an undo tablespace and creates the undo log record. Finally, the system links the location of the undo log record with the rollback RID of the actual record in the data tablespace.

Update Operation

Assuming that version 1 is the record that was originally inserted, the following figure shows how version 1 is updated to version 2 and then to version 3.

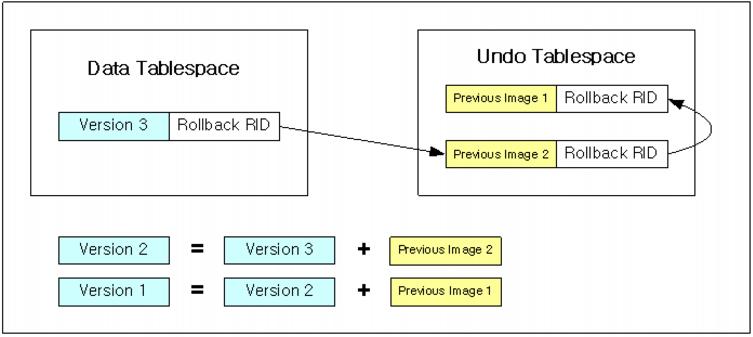

[Figure 8-4] Using MVCC with Disk Tablespaces

As shown in the above figure, the most recent image of a record always exists in the data tablespace. If the execution of some statement starts before version 3 is committed, it executes on the basis of the previous version, which is version 2, because it cannot read version 3. In such cases, the statement copies the image of version 3 to a buffer that it manages privately. It then reads the previous version 2 from the location indicated by the rollback RID of the record and stores this in its private buffer, where it copied version 3. If the statement cannot read version 2 either, it repeats the process and creates its own copy of version 1.

If the statement cannot read version 1, this means that the execution of the statement started before the record was initially inserted, so the statement will ignore the record.

Clearing the Undo Log Record Area

In the case of disk tablespace, the size of the data tablespace does not increase much if a great number of update operations occur in a short period of time. However, because the effect of in-place MVCC is to increase the number of undo log records, the amount of space being used in the undo tablespace would increase in this situation. Because the size of the undo tablespace is set when the CREATE DATABASE statement is executed, and cannot be changed, it is necessary to reuse undo log records. Undo log records are registered in the undo tablespace header when transactions are committed, and are managed in a linked list. When it is no longer necessary to refer to undo log records pertaining to particular transactions, the records are cleared from the system. In contrast, when a transaction is rolled back, the undo log records are cleared immediately instead of being registered in the undo tablespace.

The undo log records that are created by insert operations are managed separately from those created by the update and delete operations. This is so that the undo log records created by insert operations can be cleared immediately when transactions are committed.

Delete Operation

Delete operations are executed in the same way as update operations. Because the information that is altered by a delete operation is a delete flag that is set in the header of the record, only information about the record header is recorded in undo log record images.

The space occupied by a deleted record is not reused immediately. First, all index keys pertaining to the record are deleted, then the actual record is deleted, and then the garbage collector removes the delete undo log record pertaining to the deleted record. Then, the space occupied by the record can be reused.

In-place MVCC vs Out-place MVCC

The in-place method, which is used with disk tablespaces, checks record versions differently than the out-place method, which is used with memory tablespaces. In the out-place method, a Commit SCN is saved for every transaction that creates a new version of a record, and this Commit SCN is used to check record versions. That is, a read transaction reads versions that have a Commit SCN lower than the SCN of the read transaction. The commit SCN of a transaction is set when the transaction is committed, and is written to all versions of records created by that transaction.

In contrast, setting the Commit SCN for a transaction in a disk tablespace requires all record versions created by the transaction to be accessed, which is unfeasible in practice. This is because transaction performance is greatly reduced, attributable to disk I/O expense.

A TSS (Transaction Status Slot) is a type of record that indicates the current state of a transaction. Each TSS has a commit SCN written in it. TSSs are permanently written in undo tablespace, and when they are no longer needed, they are deleted by the Ager. Deleted TSSs can be reused for other transactions.

A transaction that is being committed does not set a Commit SCN in all of the record versions that it has created; instead, it sets the Commit SCN in the TSS with which it is associated. Additionally, when a record is updated, a TSS identifier is written in the record, and the written TSS identifier is used by the transaction for checking record versions. That is, the transaction compares its SCN with the Commit SCN of the TSS of each record, and only reads records having Commit SCNs lower than its SCN.

Considerations when Using MVCC

Altibase uses MVCC for concurrency control with both memory and disk tablespaces. Because MVCC is different than Single Version Concurrency Control (SVCC), its precursor, there are a few things to keep in mind when using MVCC.

Transactions that take a long time increase the size of the database.

If a particular transaction takes a long period of time to execute and is not committed, because there is the chance that the transaction may need to read images of previous versions of data, the garbage collector will not be able to delete previous images created by other transactions (previous record versions in the case of memory tables, and undo log records in the case of disk tables) and the index keys for these records. This increases the size of memory tables and the amount of space used in disk undo tablespace. In addition, in order to roll back the transaction later, log files cannot be deleted, which can consume all of the space on the file system containing the log files.

A large number of simultaneous transactions increases the size of the database.

Previous images created by MVCC are cleared by the garbage collector. If the number of simultaneous transactions is much greater than the number of CPUs, the garbage collector may not have enough time to delete previous images, and the size of the database will continue to increase.

Large amounts of UPDATE operations increase the size of the database

If operations that generate large amounts of previous versions of data are executed frequently, memory tables increase in size, and the undo tablespace, which is used with disk tables, increases in size as well.

Large numbers of previous images decrease performance.

If excessive numbers of previous images remain in the database for the reasons mentioned above, the cost of searching for a specific record might increase, which can degrade overall performance.

Repeatable Read vs Consistent Read

In typical DBMSs in which SVCC is implemented, when records are read, an S lock is set, which conflicts with X locks, with the result that records that are being read cannot be altered. Accordingly, the isolation level of the database is set to Repeatable Read. In contrast, in Altibase, a record can be updated while it is being read, and thus Consistent Read is the default isolation level. As a result, a transaction that repeatedly reads a table without being committed might obtain different results every time. To avoid this, set the isolation level to Repeatable Read or use the SELECT FOR UPDATE command.

Transaction Durability

Generally, the term "transaction" refers to an independent unit that serially reads and updates a stored object (a page or record; implemented differently depending on the DBMS).

To improve performance, DBMSs interleave multiple transactions so that they can be executed simultaneously. Concurrency control ensures that transactions are performed concurrently without violating data integrity, and guarantees that the result of multiple transactions executed simultaneously is the same as if the transactions were executed sequentially without overlapping in time.

Therefore, DBMSs are designed to guarantee that transactions in order to record all data even under all unexpected system failures accurately:

• Atomicity
• Consistency
• Isolation
• Durability

Concept

Of the four properties of a transaction, durability means that after a transaction has been committed, the committed transaction must be guaranteed, even if a database failure occurs before the changed data are physically written to disk.

To ensure the durability of transactions, DBMSs manage transaction logs, that is, a redo log record, in which contains changes to the data page. If a system failure occurs before the data changed by a committed transaction are written to disk, the DBMS reads the logs when the system is restarted, and the data are restored according to the contents of the logs.

Transaction durability is an important factor in determining transaction processing performance. In memory-based DBMSs (which exhibit performance tens of times better than disk-based DBMSs), guaranteeing transaction durability has a much bigger impact on performance than in disk-based DBMS.

For example, logs for all database updates must be written to a log file on disk in order for a DBMS to provide complete transaction durability. Disk I/O occurs when all of the logs in the memory log buffer are written to log files, and this disk I/O acts as a bottleneck in processing transactions, which degrades processing performance. That is to say, there is a tradeoff between complete transaction durability and transaction processing performance.

Altibase guarantees complete transaction durability and provides a transaction durability management method that allows the balance between transaction processing performance and transaction durability to be controlled in order to realize high transaction-processing performance in multiple-system implementations.

How to Manage Durability

In Altibase, durability is managed using the COMMIT_WRITE_WAIT_MODE and LOG_BUFFER_TYPE properties in the altibase.properties file. COMMIT_WRITE_WAIT_MODE specifies whether a transaction waits until an update log has been written to a log file on disk. This property can be specified for the entire system or for individual sessions.

LOG_BUFFER_TYPE specifies the type of log buffer that is used when update logs are written to a log file. This property can't be changed while the system is running.

For more detailed information on these properties, please refer to the General Reference > Chapter 2. Altibase Properties.

The case where a transaction does not wait until logs have been written to disk and a kernel log buffer is used: (Durability Level 3)

[Figure 8-5] Durability in The Case where a Transaction Does Not Wait until Logs Have Been Written to Disk and a Kernel Log Buffer Is Used:

Set both COMMIT_WRITE_WAIT_MODE and LOG_BUFFER_TYPE to 0 and 0. With the default Altibase durability property settings, update logs are stored in the log buffer of the OS kernel area, and transactions do not wait until their update logs have been written to the log file.

The case where a transaction does not wait until logs have been written to disk and a memory log buffer is used: (Durability Level 2)

[Figure 8-6] Durability in The Case where a Transaction Does Not Wait until Logs Have Been Written to Disk and a Memory Log Buffer Is Used:

Set COMMIT_WRITE_WAIT_MODE and LOG_BUFFER_TYPE to 0 and 1, respectively. With this method, transactions store their update logs in a memory log buffer, and the log flush thread itself flushes the logs in the log buffer to the log file.

The case where a transaction waits until logs have been written to disk and a kernel log buffer is used: (Durability Level 4)

[Figure 8-7] Durability in The Case where a Transaction Waits until Logs Have Been Written to Disk and a Kernel Log Buffer Is Used:

Set COMMIT_WRITE_WAIT_MODE and LOG_BUFFER_TYPE to 1 and 0, respectively. With this method, transaction update logs are stored in the log buffer of the OS kernel area, and logs for committed transactions are written directly to a log file.

The case where a transaction waits until logs have been written to disk and a memory log buffer is used: (Durability Level 5)

[Figure 8-8] Durability in The Case where a Transaction Waits until Logs Have Been Written to Disk and a Memory Log Buffer Is Used

Set COMMIT_WRITE_WAIT_MODE and LOG_BUFFER_TYPE to 1 and 1, respectively. With this method, transactions store their update logs in a memory log buffer, and logs for committed transactions are written directly to a log file, as mentioned above.

Checkpointing

Checkpointing stores content of the main memory database to backup data files on a regular basis. The purpose of checkpointing is to minimize the time taken to recover a database from a system failure.

Altibase uses fuzzy and ping-pong checkpointing methods to securely back up and manage databases.

Checkpointing Memory Databases

Altibase prioritizes transaction performance and database stability by implementing fuzzy checkpointing and ping-pong checkpointing together for checkpointing memory databases.

General databases implement the WAL(Write Ahead Logging) protocol which writes log records to disk before applying the modified data page to disk, in order to ensure database consistency. The database server controls concurrency with logs by acquiring the latch in the checkpoint target page to implement the WAL protocol. Degradation of other transactions can occur throughout this process.

Altibase performs checkpoint operations without acquiring a latch in the checkpoint target page to resolve the degradation of transactions. Altibase also maintains two checkpoint image files to address inconsistency in checkpoint image files which can occur for not conforming to the WAL protocol while checkpointing. For example, if the Altibase server fails in a state due to the inconsistency of the last checkpoint image file, the previous one of two checkpoint image files can be recovered.

Ping-pong checkpointing maintains two checkpoint image files as described above and uses a different image file in turn for each checkpoint. Fuzzy checkpointing allows the execution of other transactions while checkpointing, thus, data of committed or uncommitted transactions can be mixed in the checkpoint image files for fuzzy checkpoint operations; "fuzzy checkpoint" derives from this state.

Checkpointing Disk Databases

Altibase implements fuzzy checkpointing, which has the following characteristics, for checkpointing disk databases.

• Other transactions are not prevented from starting while checkpointing.
• Not all dirty pages are applied to the disk while checkpointing. Dirty pages are applied to the disk, according to the buffer replacement policy.

Most disk DBMSs implement fuzzy checkpointing since it can be performed without stopping the DBMS.

However, the log file with the minimum(oldest) LSN among the Begin LSNs of active transactions and the LSNs of dirty pages, and the log files following it, are necessary for recovery from failure. Database recovery time and log files to be kept by the server increase for every dirty page not applied to disk.

Checkpointing Process

The following table describes the steps in which checkpointing is started and completed for checkpointing operations.

When the message [CHECKPOINT BEGIN] appears, prior to recording the Checkpoint Begin Log([CHECKPOINT-step2]), Altibase computes and determines the LSN of the Redo log for Restart Recovery. At this point, dirty pages in the disk DB are flushed and the determined Recovery LSN is recorded to the log anchor.

The checkpoint message for each step is written to $ALTIBASE_HOME/trc/altibase_sm.log. The following table summarizes checkpoint messages

Checkpoint Message	Description
[CHECKPOINT-BEGIN]	Checkpointing starts
	Flushes dirty pages in database buffer Tablespace log anchor synchronization
[CHECKPOINT-step2] Write BeginChkpt Log [0,1036171]	Writes Checkpoint Begin Log
[CHECKPOINT-step3] Flush Dirty Page(s)	Flushes dirty pages in memory DB
[CHECKPOINT-step4] sync Database File	Memory database synchronization
	Writes Redo LSN to the header files of data files in all tablespaces
[CHECKPOINT-step5] Write End_Chkpt Log [0,1037350]	Writes Checkpoint End Log
[CHECKPOINT-step6] Sync Log File	Log file synchronization
[CHECKPOINT-step7] Check LogFiles that are not Needed	Confirms unnecessary log files
[CHECKPOINT-step8] Update and Flush Log Anchor	Updates and flushes log anchor
[CHECKPOINT-step9] Remove Online Log File	Deletes online log files
[CHECKPOINT-END]	Checkpointing completes

The following figure shows the process of threads checkpointing in the Altibase Process when checkpointing occurs.

[Figure 8-9] The Checkpointing Process

Controlling Checkpointing

Checkpointing can be triggered by time conditions, log conditions or the user

Periodic Checkpointing

Checkpointing occurs at regular intervals during operations. This interval is determined by CHECKPOINT_INTERVAL_IN_SEC, an Altibase property. For more detailed information on this property, please refer to General Reference > Chapter 2. Altibase Properties.

Log Checkpointing

Checkpointing occurs as many times as log files are generated in the database. The number of times is specified by the CHECKPOINT_INTERVAL_IN_LOG property. For detailed information on this property, please refer to General Reference > Chapter 2. Altibase Properties.

Manual Checkpointing

Checkpointing occurs when the user manually issues the "ALTER SYSTEM CHECKPOINT" statement.

Checkpointing Related Properties

The following are properties related to checkpointing. For more detailed information on each property, please refer to General Reference > Chapter 2. Altibase Properties.

• CHECKPOINT_BULK_WRITE_PAGE_COUNT
• CHECKPOINT_BULK_WRITE_SLEEP_SEC
• CHECKPOINT_BULK_WRITE_SLEEP_USEC
• CHECKPOINT_BULK_SYNC_PAGE_COUNT
• CHECKPOINT_ENABLED
• CHECKPOINT_INTERVAL_IN_LOG
• CHECKPOINT_INTERVAL_IN_SEC
• DIRECT_IO_ENABLED
• DATABASE_IO_TYPE
