SQLBindParameter#

SQLBindParameter binds the parameter marker of a SQL statement with an application variables. The data is transmitted from an application to the database when SQLExecute() is called.

Syntax#

SQLRETURN  SQLBindParameter (
    SQLHSTMT        stmt,
    SQLSMALLINT     par,
    SQLSMALLINT     pType,
    SQLSMALLINT     cType,
    SQLSMALLINT     sqlType,
    SQLULEN         columnSize,
    SQLSMALLINT     scale,
    SQLPOINTER      value,
    SQLLEN          valueMax,
    SQLLEN *        valueLength );

Arguments#

Data Type Argument In/Output Description
SQLHSTMT stmt Input Statement handle
SQLSMALLINT par Input Parameter order. Starting with 1.
SQLSMALLINT pType Input Parameter type. All parameters in a SQL statement must be input variables (SQL_PARAM_INPUT). When executing a stored procedure, arguments can be are input, output, or input/output type variables. (SQL_PARAM_INPUT, SQL_PARAM_OUTPUT, SQL_PARAM_INPUT_OUTPUT)
SQLSMALLINT cType Input C data type of the parameter (SQL_C_CHAR, SQL_C_SBIGINT, etc) See: Appendix of this document
SQLSMALLINT sqlType Input SQL data type of the parameter (SQL_CHAR, SQL_VARCHAR, etc) See: Appendix of this document
SQLULEN columnSize Input An argument that indicates the precision of a parameter marker. Based on SQL type, it can be used as follows:
* SQL_CHAR, SQL_VARCHAR: Indicates the max allowed length of a parameter marker.
(If columnSize is 0, the default columnSize is used. For SQL_CHAR and SQL_VARCHAR, their columnSize is 32,000.)
* SQL_DECIMAL, SQL_NUMERIC: Indicates the decimal significant digits of a parameter marker.
(If columnSize is 0, the default columnSize is used. For both SQL_DECIMAL and SQL_NUMERIC, the columnSize is 38, which is the max number of decimal significant digits.)
* SQL_BINARY, SQL_BYTES, SQL_NIBBLE, SQL_VARBIT: Indicates the max allowed length of a parameter marker
.(If columnSize is 0, the default columnSize is used. The columnSize for each type is as follows: For SQL_BINARY, SQL_BYTE and SQL_VARBIT, their columnSize is 32000. For SQL_NIBBLE, its columnSize is 254.)
* For other types, the user-defined columnSize argument is ignored and the following fixed value is used.
SQL_SMALLINT 5
SQL_INTEGER 10
SQL_BIGINT 19
SQL_REAL 7
SQL_FLOAT 38
SQL_DOUBLE 15
SQL_TYPE_DATE 30
SQL_TYPE_TIME 30
SQL_TYPE_TIMESTAMP 30
SQL_INTERVAL 10
SQL_GEOMETRY 3200
SQLSMALLINT scale Input Decimal number according to *Value or parameter marker If the SQL data type is SQL_NUMERIC, the number of digits after the decimal point
SQLPOINTER value Input (Suspended) The pointer of the actual data about the parameter when SQLExecute() or SQLExecDirect() is called.
SQLLEN valueMax Input/Out Maximum length of the *Value buffer for the character or binary C data
SQLLEN * valueLength Input (Suspended) Pointer of the input/output data length when SQLExecute() or SQLExecDirect() is called

Return Values#

SQL_SUCCESS
SQL_SUCCESS_WITH_INFO
SQL_INVALID_HANDLE
SQL_ERROR

Description#

Binding Arrays

The array binding method reduces the network round-trip count and improves the speed by sending the parameter using array types.

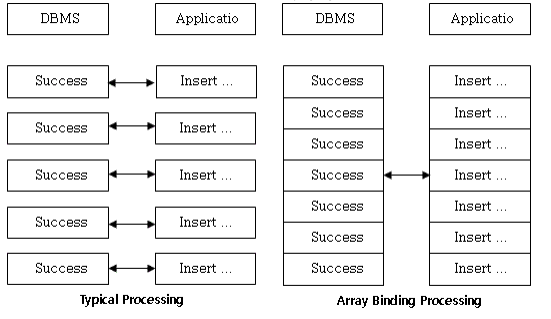

The following figure briefly shows how works array binding. Larger amount of data can be sent in a shorter time due to reduced network paging count.

[Figure 2‑1] Array Binding

There are two array binding types:

Column-wise Parameter Binding#

When using column-wise binding, an application binds one or two, or in some cases three, arrays to each column for which data is to be returned. To use a column-wise binding, do the following:

Set SQL_ATTR_PARAM_BIND_TYPE in Arguments Attribute of an application function SQLSetStmtAttr().

Set SQL_PARAM_BIND_BY_COLUMN in param.

  1. Allocate the parameter buffer array.
  2. Allocate the indicator buffer array.

  3. Call SQLBindParameter() with arguments.

  4. cType is C data type of the single element in the parameter buffer array.

  5. sqlType is the SQL data type of the parameter.
  6. Value is the address of the parameter buffer array.
  7. valueMax is the size of the single element in the parameter buffer array.
  8. valueLength is the address of the length/indicator array.

The following figure shows how the column-wise binding operates for each column.

[Figure 2‑2] Column-wise Binding

Example#

#define DESC_LEN 51
#define ARRAY_SIZE 10

SQLCHAR *      Statement = "INSERT INTO Parts (PartID, Description,  Price) "
                                                "VALUES (?, ?, ?)";
SQLUINTEGER    PartIDArray[ARRAY_SIZE];
SQLCHAR        DescArray[ARRAY_SIZE][DESC_LEN];
SQLREAL        PriceArray[ARRAY_SIZE];
SQLINTEGER     PartIDIndArray[ARRAY_SIZE], DescLenOrIndArray[ARRAY_SIZE],
               PriceIndArray[ARRAY_SIZE];
SQLUSMALLINT   i, ParamStatusArray[ARRAY_SIZE];
SQLUINTEGER ParamsProcessed;

// Set the SQL_ATTR_PARAM_BIND_TYPE statement attribute to use
// column-wise binding.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAM_BIND_TYPE, SQL_PARAM_BIND_BY_COLUMN, 0);

// Specify the number of elements in each parameter array.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAMSET_SIZE, ARRAY_SIZE, 0);

// Specify an array in which to return the status of each set of
// parameters.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAM_STATUS_PTR, ParamStatusArray, 0);

// Specify an SQLUINTEGER value in which to return the number of sets of
// parameters processed.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAMS_PROCESSED_PTR, &ParamsProcessed, 0);

// Bind the parameters in column-wise fashion.
SQLBindParameter(hstmt, 1, SQL_PARAM_INPUT, SQL_C_ULONG, SQL_INTEGER, 5, 0,
                  PartIDArray, 0, PartIDIndArray);
SQLBindParameter(hstmt, 2, SQL_PARAM_INPUT, SQL_C_CHAR, SQL_CHAR, DESC_LEN - 1, 0,
                  DescArray, DESC_LEN, DescLenOrIndArray);
SQLBindParameter(hstmt, 3, SQL_PARAM_INPUT, SQL_C_FLOAT, SQL_REAL, 7, 0,
                  PriceArray, 0, PriceIndArray);

Row-wise Parameter Binding#

When using row style bindings, the application defines a structure (array) that contains a parameter and a length / indicator buffer for each parameter to be bound.

An application performs the next procedures to use the row-wise binding.

Define the array to include the single set of the parameters (including parameters and the length/indicator buffers).

Set SQL_ATTR_PARAM_BIND_TYPE in argument attributes of function SQLSetStmtAttr(), and set the size of the array including program variables in the argument parameter, and binds the address of each element to the first element of the array.

Call SQLBindParameter() with following arguments.

  • cType is the component type of the parameter buffer.
  • sqlType is the SQL data type of the parameter.
  • Value is the address of the parameter buffer component in the first array element.
  • valueMax is the size of the parameter buffer component.
  • valueLength is the address of the length/indicator to be bound

The following figure shows how row-wise binding operates.

[Figure 2‑3] Row-wise Binding

Example#

#define DESC_LEN 51
#define ARRAY_SIZE 10

typedef tagPartStruct {
   SQLREAL       Price;
   SQLUINTEGER   PartID;
   SQLCHAR       Desc[DESC_LEN];
   SQLINTEGER    PriceInd;
   SQLINTEGER    PartIDInd;
   SQLINTEGER    DescLenOrInd;
} PartStruct;

PartStruct PartArray[ARRAY_SIZE];
SQLCHAR *      Statement = "INSERT INTO Parts (PartID, Description,
                Price) "
               "VALUES (?, ?, ?)";
SQLUSMALLINT   i, ParamStatusArray[ARRAY_SIZE];
SQLUINTEGER ParamsProcessed;

// Set the SQL_ATTR_PARAM_BIND_TYPE statement attribute to use
// column-wise binding.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAM_BIND_TYPE, sizeof(PartStruct), 0);

// Specify the number of elements in each parameter array.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAMSET_SIZE, ARRAY_SIZE, 0);

// Specify an array in which to return the status of each set of
// parameters.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAM_STATUS_PTR, ParamStatusArray, 0);

// Specify an SQLUINTEGER value in which to return the number of sets of
// parameters processed.
SQLSetStmtAttr(hstmt, SQL_ATTR_PARAMS_PROCESSED_PTR, &ParamsProcessed, 0);

// Bind the parameters in row-wise fashion.
SQLBindParameter(hstmt, 1, SQL_PARAM_INPUT, SQL_C_ULONG, SQL_INTEGER, 5, 0,
                  &PartArray[0].PartID, 0, &PartArray[0].PartIDInd);
SQLBindParameter(hstmt, 2, SQL_PARAM_INPUT, SQL_C_CHAR, SQL_CHAR, DESC_LEN - 1, 0,
                  PartArray[0].Desc, DESC_LEN, &PartArray[0].DescLenOrInd);
SQLBindParameter(hstmt, 3, SQL_PARAM_INPUT, SQL_C_FLOAT, SQL_REAL, 7, 0,
                  &PartArray[0].Price, 0, &PartArray[0].PriceInd);

Constraints#

For SQL_BINARY, SQL_BYTES, SQL_NIBBLE and SQL_VARBIT types, the buffer size and column size must be specified.

For SQL_CHAR and SQL_VARCHAR types, the default precision is the max size that a column can have. For SQL_NUMERIC and SQL_NUMBER types, the precision is 38.

Cautions#

If the value argument is set to a pointer to an empty string ('') and the cType argument is set to SQL_C_CHAR, the sqlType argument is set to 0 if the native type (SQL_DOUBLE, SQL_REAL, SQL_BIGINT, SQL_INTEGER, SQL_SMALLINT) is set. If it is set as non-native type (SQL_NUMERIC, SQL_DECIMAL, SQL_FLOAT), NULL is entered.

Diagnosis#

SQLSTATE Description Comments
07006 Violation of the limited data type attributes A cType data type cannot be converted into a sqlType data type
07009 Invalid numberInvalid number Indicated par value is smaller than 1
HY000 General error
HY001 Memory allocation error Failed to allocate the memory for the explicit handle
HY003 An application buffer type is not valid A cType value is invalided C data type.
HY009 Invalid pointer used(null pointer) valueLength is a NULL pointer and pType is not SQL_PARAM_OUTPUT.
HY090 Invalid buffer length valueMax value is smaller than 0 or higher than 64K
HY105 Invalid parameter type pType is invalided value (in, out, inout)
SQLExecDirect
SQLExecute
SQLFreeStmt

Example#

< Refer to: $ALTIBASE_HOME/sample/SQLCLI/demo_ex2.cpp >

sprintf(query,"INSERT INTO DEMO_EX2 VALUES( ?, ?, ?, ?, ?, ? )");

/* prepares an SQL string for execution */
if (SQLPrepare(stmt, (SQLCHAR *)query, SQL_NTS) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}

/* binds a buffer to a parameter marker in an SQL statement */
if (SQLBindParameter(stmt,
                     1, /* Parameter number, starting at 1 */
                     SQL_PARAM_INPUT, /* in, out, inout */
                     SQL_C_CHAR, /* C data type of the parameter */
                     SQL_CHAR,   /* SQL data type of the parameter : char(8)*/
                     8,          /* size of the column or expression, precision */
                     0,          /* The decimal digits, scale */
                     id,         /* A pointer to a buffer for the parameter's data */
                     sizeof(id), /* Length of the ParameterValuePtr buffer in bytes */
                     &id_ind     /* indicator */
                     ) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}
if (SQLBindParameter(stmt, 2, SQL_PARAM_INPUT,
                     SQL_C_CHAR, SQL_VARCHAR,
                     20,  /* varchar(20) */
                     0,
                     name, sizeof(name), &name_ind) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}
if (SQLBindParameter(stmt, 3, SQL_PARAM_INPUT,
                     SQL_C_SLONG, SQL_INTEGER,
                     0, 0, &age,
                     0,/* For all fixed size C data type, this argument is ignored */
                     NULL) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}
if (SQLBindParameter(stmt, 4, SQL_PARAM_INPUT,
                     SQL_C_TYPE_TIMESTAMP, SQL_DATE,
                     0, 0, &birth, 0, NULL) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}
if (SQLBindParameter(stmt, 5, SQL_PARAM_INPUT,
                     SQL_C_SSHORT, SQL_SMALLINT,
                     0, 0, &sex, 0, NULL) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}
if (SQLBindParameter(stmt, 6, SQL_PARAM_INPUT,
                     SQL_C_DOUBLE, SQL_NUMERIC,
                     10, 3, &etc, 0, &etc_ind) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}

/* executes a prepared statement */

sprintf(id, "10000000");
sprintf(name, "name1");
age = 28;
birth.year=1980;birth.month=10;birth.day=10;
birth.hour=8;birth.minute=50;birth.second=10;
birth.fraction=0;
sex = 1;
etc = 10.2;
id_ind = SQL_NTS;        /* id   => null terminated string */
name_ind = 5;            /* name => length=5 */
etc_ind = 0;
if (SQLExecute(stmt) != SQL_SUCCESS)
{
    execute_err(dbc, stmt, query);
    SQLFreeStmt(stmt, SQL_DROP);
    return SQL_ERROR;
}
